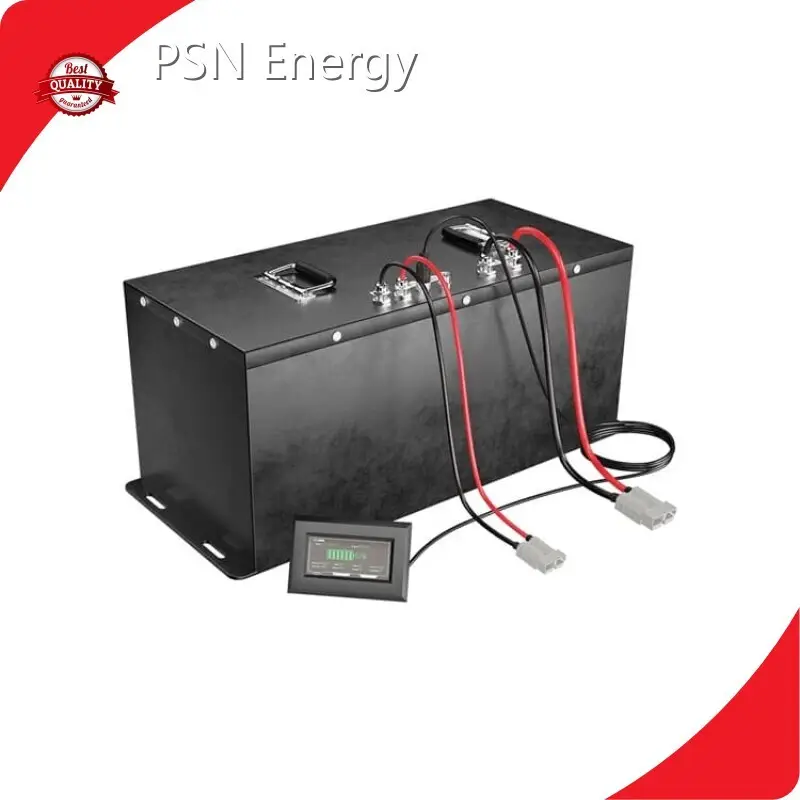

Product details of the custom lithium battery manufacturers
Product Specification
Discharge cut-off voltage: 62.4V
Charge limit votage: 87.6
Temperature range: -20~60
Battery type: LFP
Weight: 65KGS
Product Overview
Innovative design concept: From appearance to construction, PSN Energy custom lithium battery manufacturers is designed by our professional designers. They discuss to each other to ensure that each design has the innovative characteristics of industrial standard. The product is inspected according to the industry standard to ensure no defect. We have great confidence in our custom lithium battery manufacturers quality.
Product Introduction
With a focus on details, PSN Energy strives to create high-quality custom lithium battery manufacturers.
Drop-in Replace Your Lead-Acid Battery
One 72(76.8)V 100Ah lithium battery equals to 6* 12V 100Ah lead-acid batteries in usable energy. With 80% lighter in weight and 50% smaller in size, we make your golf cart more maneuverable, faster and with less wear & tear. Most importantly, we are more Cost-Effective to help you save over $320 per year in capital and technical maintenance costs.
Your Lifetime Golf Cart Battery
Born for club cart golf carts, battery is perfectly compatible with Golf Carts brands of Club Car, EZGO, ICON & Yamaha. It can easily power your golf cart even in steep areas with its 1C continuous discharging current and 600A(1S) peak discharging current.
Equipped with Bluetooth 5.0, PSN 72V lithium golf cart batteries realize a brand-new upgrade. New-generation Bluetooth lithium battery supports auto-connection, smart control and real-time monitoring, providing you unprecedented user experience.
Maximize Your Battery Life and Charging Efficiency
Low-temperature cut-off protection ensures optimal operation in any condition. It can automatically cut off charging when the cells are below 32°F and discharging below -4°F, guaranting maximum battery lifespan and charging efficiency. Drive your golf carts as you desire and never mind the limitation of weather and regions.
PSN Energy adopts the best lithium cells for your golf cart batteries. Our EV grade-A Prismatic LiFePO4 cells provide 8760Wh green energy and 200A BMS, making your golf carts withstand larger surges and run longer and more smoothly. Prismatic shell technology makes the battery more uniform in force area and has better heat dissipation than similar battery cells.
Unparalleled Self-Developed BMS
self-developed 200A BMS defends dust, water, and salt spray; its 20+ protections safeguard against over-charging, over-discharging, over-current, overheating and short circuits; overload protection with auto-recovery let user's have no extra invention; its low-temperature cut-off function guarantees a safe charge/discharging operation in cold scenarios.
One PSN Energy 72V 100Ah lithium golf cart battery can release 8760Wh Energy. That means you can drive your cart and enjoy 7~9 rounds of 18-hole golf tournaments. So large energy can run 40~47 miles when fully charged, allowing you to enjoy double the runtime of the AGM battery.
The 72volt lithium golf cart batteries flexibly support a 87.6V LiFePO4 charger or solar panel to charge. It can be charged with Max 1C charging efficiency, much faster than regular lead-acid batteries. Approx 3.3hrs can realize a full charge with a 58.4V 30A LiFePO4 charger.
Universal Energy Solution
PSN Energy 72(76.8)V 100Ah golf cart Bluetooth lithium battery is born for club car golf carts, EZGO, ICON and Yamaha. Its powerful compatibility makes it also suitable for boathouses, home backup power and 72V street-Legal Carts: LSV, ATV, NEV, E-trike, electric shuttle buses, and electric trike scooters(≤21ML/35KM/h).
|
Cell Type:
|
LiFePO4 Prismatic 3.2V 100Ah CALB
|
|
Warranty:
|
5 Years
|
|
Cycle Life:
|
4000 cycles at 100% DOD, 6000 cycles at 80% DOD, 15,000 cycles at 60% DOD
|
|
Nominal Voltage:
|
72V
|
|
Rated Capacity:
|
100Ah
|
|
Energy:
|
8760Wh
|
|
Max. Expansion (Parallel & Series):
|
4P
|
|
Internal Resistance:
|
≤40mΩ
|
|
Certifications:
|
CE, RoHS, UN38.3
|
|
Bluetooth:
|
√
|
|
BMS：
|
200A
|
|
Max. Continuous Output Power：
|
For Electric Cart 5000W;For Energy Storage5120WH
|
|
Max. Continuous Charge Current：
|
100A
|
|
Max. Continuous Discharge Current：
|
100A
|
|
Max. Discharge Current 1 Second：
|
600A
|
|
Charge Method:
|
CC/CV
|
|
Charge Voltage:
|
87.6V ± 0.8V
|
|
Recommend Charge Current:
|
20A(0.2C)
|
|
Charge Temperature:
|
0℃ to 50℃/32℉ to 122℉
|
|
Discharge Temperature:
|
-20℃ to 60℃ / -4℉ to 140℉
|
|
Storage Temperature:
|
-10℃ to 50℃/14℉ to 122℉
|
|
Low-Temperature Protection:
|
Yes (32℉/0℃)
|
|
Low-Temperature Charging Protection Auto Recovery:
|
Yes (41℉/5℃)
|
|
Terminals:
|
Anderson
|
|
Weight Approx.:
|
40kgs
|
|
Size:
|
550*270*270mm
|
|
Housing Material:
|
metal case
|
|
Protection Class:
|
IP54
|
1
What to do when receive the battery?
Please charge the Bluetooth battery first after receiving it. This will ensure that the battery can be turned on and the Bluetooth connection is established.
Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger to charge the battery and turn on the battery, it can be used normally.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
2
How can I download the Bluetooth App?
Apple APP Store and Google play. Download and open the app to directly scan the QR code and connect the battery or search for nearby Bluetooth batteries.
3
How to Charge the 48V 100Ah Golf Cart Lithium LiFePO4 battery?
We recommend using a 58.4V battery charger to maximize the capacity
Recommend charging voltage: 53.25V ~ 54.75V
Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
4
Do I need a special charger for lithium golf cart batteries?
You need the correct charger for your particular Lithium battery. Using a charger designed specifically for lithium batteries ensures optimal performance and longevity.
5
What is the life expectancy of a lithium golf cart battery?
Lithium batteries have a significantly longer lifespan compared to lead-acid batteries, lithium golf cart batteries can last 10+ years.
6
How will installing lithium batteries improve the performance of a golf cart?
Lithium batteries can deliver more power to your golf cart than traditional lead-acid batteries. This means you can tackle hills and inclines with ease, and your golf cart will have a higher top speed.
7
Is a 48V Lithium Golf Cart Battery Better Than 36V?
While 36V setups have been popular in golf carts for many years and perform well, there are notable advantages to using a 48V system:
● Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.
● Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.
● Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.
● Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
