Focus on customer made high quality power lithium battery and test equiment to very application.

232kwh 254kwh 261kwh Energy Storage System BESS Solar with Liquid Cooling for Off-Grid On-Grid Connection Featuring LiFePO4 Battery 1

232kwh 254kwh 261kwh Energy Storage System BESS Solar with Liquid Cooling for Off-Grid On-Grid Connection Featuring LiFePO4 Battery 2

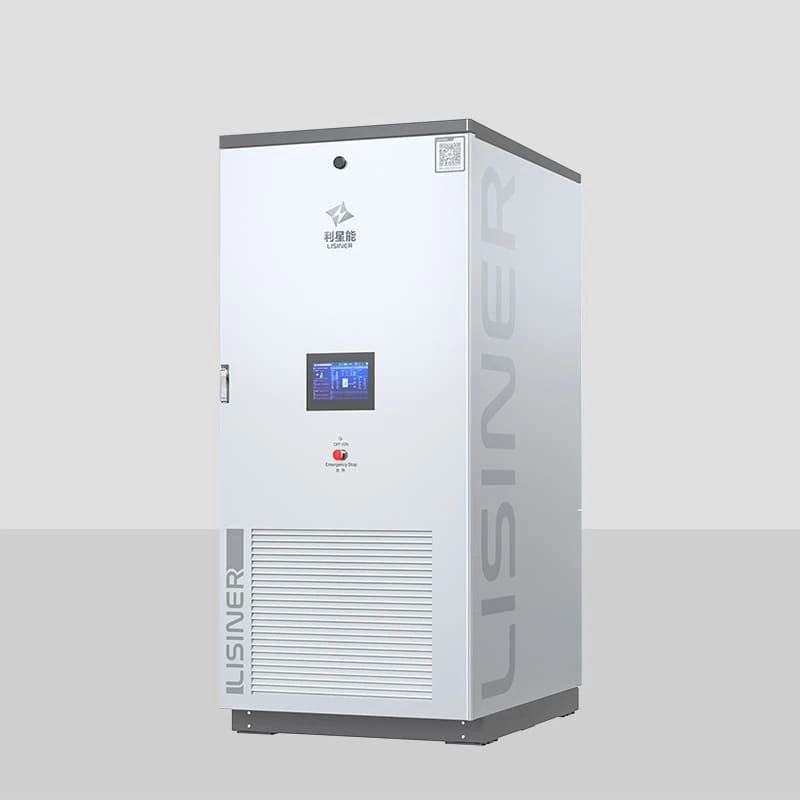

232kwh 254kwh 261kwh Energy Storage System BESS Solar with Liquid Cooling for Off-Grid On-Grid Connection Featuring LiFePO4 Battery

Industrial & Commercial Energy Storage System
Capacity Options ：Offers 232kwh, 254kwh, and 261kwh for users to choose according to specific energy storage needs
Battery Cells:Utilizes Grade A LiFePO4 Cells in 3.2V280Ah/304Ah/316Ah Prismatic form. These cells possess excellent safety characteristics due to the stable chemical properties of LiFePO4, which minimize risks associated with overheating, overcharging, and short circuits.
Grid Compatibility: Supports various grid connection models, including off grid, hybrid grid, and on grid, providing flexibility for different application scenarios
Best Service: Comes with a 24-hour response service and a 15-year design life, along with a 5-year warranty. This ensures reliable after-sales support and gives customers confidence in the long-term performance and durability of the system.

Inquiry

Write a Review

Ultimate safety

1.Three levels: cell level, pack level, and system level to prevent re-ignition
2.Four-level fire warning, three-layer security architecture design, early identification of system warning risks
3.Combined with AI technology, intelligent monitoring system online data, real-time diagnosis of equipment status, early warning

High Performance Management

1.Single cluster management, standard working condition energy conversion efficiency>88%, extreme energy conversion efficiency>90%, single cluster energy utilization rate increased by 15%

2.The temperature difference of the battery cell is ≤3℃, the maximum temperature rise is ≤5℃, the maximum temperature under extreme working conditions is ≤50℃, and the cycle life is increased by 20%.

3.Power conservation in winter, auxiliary losses reduced by 20%

Flexible installation

1.No transformer required, efficiency increased by 3%

2.Aviation plug design, plug and play, supports one-key power-on

3.Shoulder to shoulder parallel connection, simple expansion, supports up to 32 devices in parallel

4.Product modularization and standardized design, rapid deployment and installation

Intelligent Operation and Control

1.Interconnection and rapid response

2.Web, APP intelligent operation and maintenance, cloud warning, quality assurance

3.Built-in cloud-edge integrated EMU200 unit, multi-scenario adaptation, one-click on-grid and off-grid switching

Reduce costs and increase revenue

1.Intelligent battery management system, battery capacity utilization rate increased by 70%, supports mixed use of new and old batteries and phased deployment, LCOS reduced by 20%
2.Precision electrical deployment, quickly improve the return on investment cycle.

High reliability

1.Automotive-grade Pack production line, extreme product quality control
2.Wide operating temperature range, supporting -30℃~50℃ working environment
3.Strong wind resistance level≥15 hurricane
4.High corrosion resistance≥C4

Energy Storage Solutions

Finished Goods Ready To Ship

Specification

Model	R232l1L1	R232L2	R261L1	R254L1PRO	R254L1
Rated power	232.96KWh	232.96KWh	261.25KWh	254.59KWh	254.59KWh
Singel cell	3.2V280Ah	3.2V280Ah	3.2V314Ah	3.2V306Ah	3.2V306Ah
Battery pack	1P260S	1P260S	1P260S	1P260S	1P260S
DC voltage	728V~936V
Rated AC voltage	380V
Rated output	152A	175A	190A	190A	190A
Protection grade	IP54
Thermal Management Technology:	Smart liquid cooling
Dimensions(mm):	140013502280	100713502250	100713502250	100713502250	100713502250
System Efficiency:	87%	89%	88%	90%	89%
Max Efficiency	88%	90%	89%	91%	90%
Weight：	≈2600kgs	≈2350kgs	≈2650kgs	≈2650kgs	≈2650kgs
Design Life:	15Years
