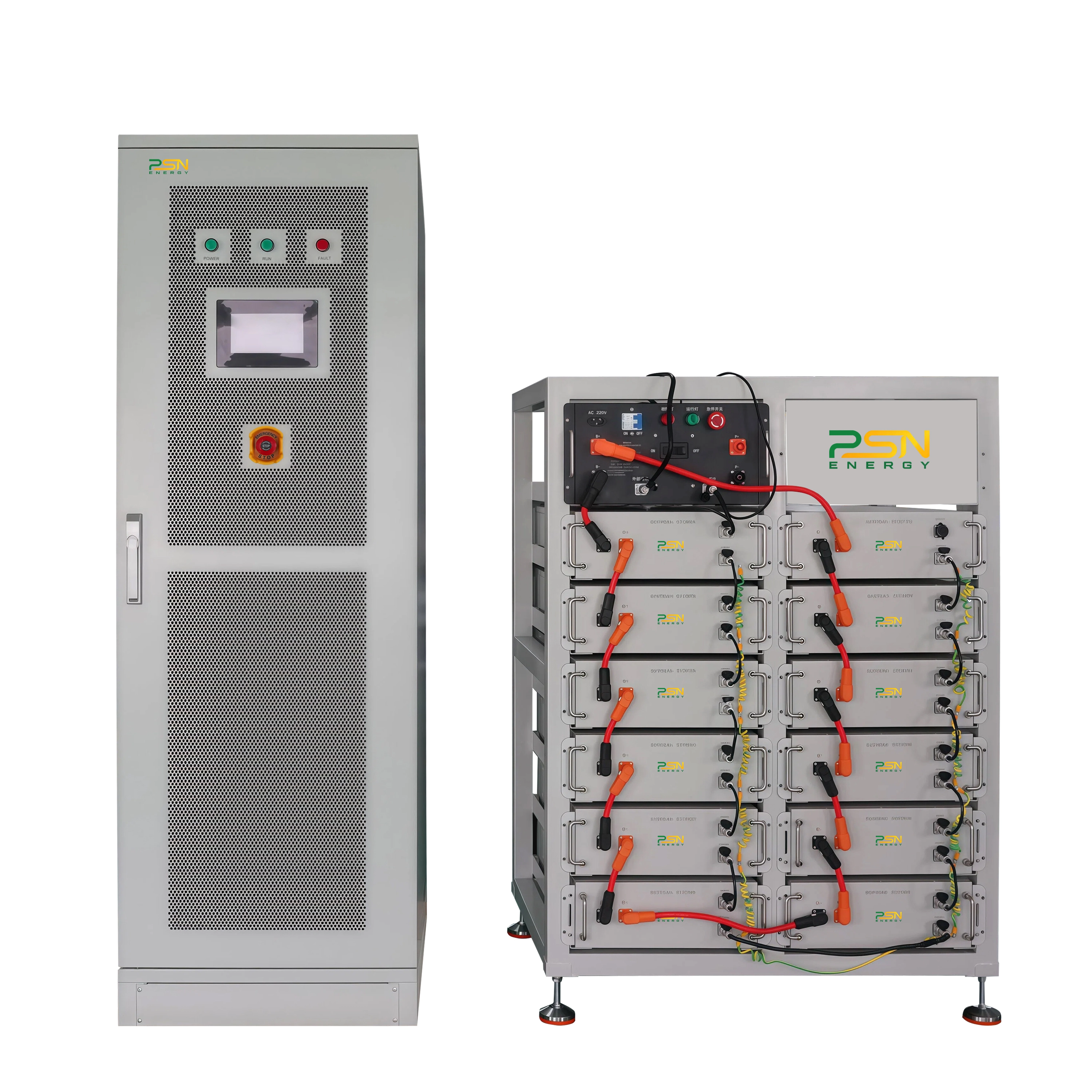

PSN ENERGY Indoor Economic Hybrid Grid seamless Switching back up Energy Storage System
The PSN-E100 features advanced pack-level by air cooling
Integrated Commercial Energy Storage Platform
PSN ENERGY cabinet systems combine lithium battery storage, power conversion technology and intelligent control architecture to provide dependable backup power and energy optimization for commercial and industrial users.
PSN-E100 Hybrid BESS
Designed to support factories, hotels, commercial buildings and infrastructure facilities in maintaining stable operation during grid power interruptions. Control cabinet and Battery are individual design.more safe
Battery Capacity:
61.44 kWh
Installation:
Outdoor / Indoor compatible
Grid Switching Time:
< 20 ms
System Scalability:
Multi-cabinet parallel connection
| Key Specifications | |
| Nominal Voltage: | 768V |
| Rate Capacity: | 80Ah(can customermade) |
| Max. Charge/Discharge Rate | 2P |
Rated Output Power AC side | 100KW(can customermade) |
Rated AC Voltage | 220/400V ±15% |
| Grid Type | 3W+PE / 3W+N+PE |
| Rated Frequency: | 50 Hz / 60 Hz |
Cycle Life | ≥ 8,000 cycles |
Round Trip Efficiency | 89% |
THDi | ≤3% |
Communication | Modbus TCP/RTU |
| Switch Time | <20ms |
Fire Suppression System | Aerosol |
Ingress Rating | IP 55 |
Cooling | Active liquid cooling/Forced Air |
Dimensions (W*D*H) | Can be customermade |
Weight | 1000KGS |
Compliance | UN38.3, IEC62477-1, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 |
Application Section
Designed for Critical Power Continuity
Seamless Switching Advantage
Instant Backup Power Protection(Connect with STS cabinet)
The system enables seamless transition from grid supply to battery power during outages, preventing operational
interruptions, equipment damage and productivity loss in critical business environments.
Modular & Scalable Energy Design
Standardized cabinet architecture allows flexible system expansion from single-cabinet installations to multi-MWh
energy storage projects, supporting future load growth and hybrid solar integration.
Reliability & Safety
Engineered for Long-Term Operational Stability
Installation & Integration Support
Supporting Global System Integrators
PSN ENERGY provides system deployment guidance, technical documentation and remote engineering support
to facilitate smooth installation and commissioning by local EPC partners.
