72V 32Ah 200A discharge power battery for electric razor upgrade kit
Small size but high current discharge, can support 200A constant discharge current.Supper strong power to let you enjoy your riding
Smart BMS build in to promise the battery safety and easy to monitor the battery status on your phone

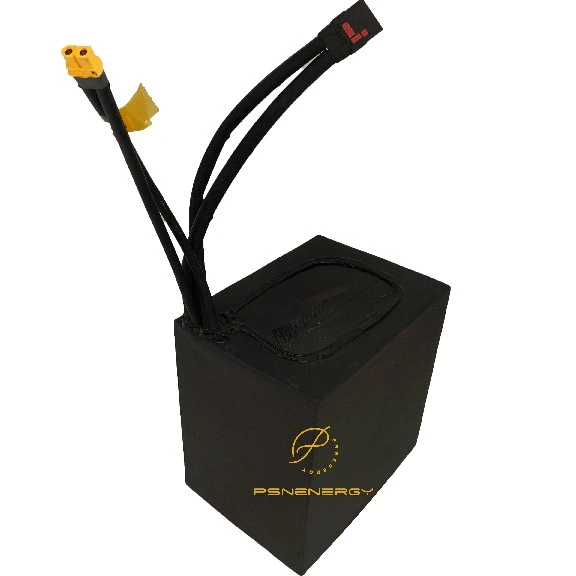

PSN-CHB-7232 Compact High Power Battery Pack
Ultra-compact high-discharge lithium battery designed for performance electric mobility and space-constrained propulsion systems.
| Key Specifications | |
| Nominal Voltage: | 72V |
| Rate Capacity: | 32Ah |
| Configuration: | 20S8P |
| Cell: | 21700 MOLIP42A |
| Continuous Discharge: | 200A |
| Peak Discharge: | 320A |
| Max Output Power: | 23KW |
Weight: | 15KGS |
| Dimensions: | 8.6"6*8.15" |
| Connector: | QS10+XT60 |
Application Section
This battery platform is engineered to deliver high discharge capability within extremely constrained installation volumes, enabling mobility designers to achieve higher performance without major structural redesign.
Enginering Features
Designed to withstand off-road vibration,dynamic load impacts and intensive power cycles,
the PSN compact power platform ensures stable output performance in real-world riding environments.
Customization Capability
Customization Options:
Discharge current tuning / BMS communication protocol / Connector type/
Housing structure adaptation / Mounting interface design
Typical Platform Variants
Model | Voltage | Capacity | Constant Current | Application |
| PSN-CHB | 24-72V | 20-40AH | 100-200A | Mini Moto |
| PSN-CHP | 60-96V | 40-60AH | 100-400A | Performance Dirt Bike |
| PSN-CHM | 36-96V | 30-75AH | 100-200A | Tow propulsion |
Need battery solution for your compact power system?
Talk to PSN engineering team today.
|
Nominal Voltage |
72V |
Nominal Capacity |
32AH |
|
Max Continuous Discharge Current |
200AMP |
Charge Voltage |
84V |
|
Max Charge Current |
15A |
Cells |
Original Lishen 4000LA |
|
BMS |
ANT BMS 200A |
Sizes |
8.5*6*8.15; |
|
Charge connector |
XT60 with 12AWG wire/can be customermade |
Discharge connector |
QS8 with 6AWG wire/can be customermade |
|
Application |
off road Electric bike,off road scooter |
Warranty |
1 years |
|
Origin Country |
China |
Type |
Rechargeable Battery |
