● Born for logistic robots
● Perfect 24V robot battery: compact size with massive power, supports ultra-fast charging
● EV-grade Grade A 10C LFP cells: over 2000+ cycles at 80% DOD, with more even force distribution and superior heat dissipation
● Low-temperature cut-off protection: stops charging below 0℃ to protect battery life; resumes charging at 5℃; cuts off discharge below -20℃
● Smart Bluetooth: auto-connection, intelligent control, real-time status monitoring, and full App control
● JK smart BMS: real-time voltage monitoring for each cell; user-friendly UI; overload protection with auto-recovery; active balancing to maintain performance and extend lifespan
● 1008Wh high energy capacity: supports 0.5–1 hour runtime depending on speed and motor load
● High output power: max 4.8KW for strong and stable performance
● Ultra-fast charging: fully charged in only 15 minutes with 160A charger
● Reliable service: 24-hour online support & 1-year warranty

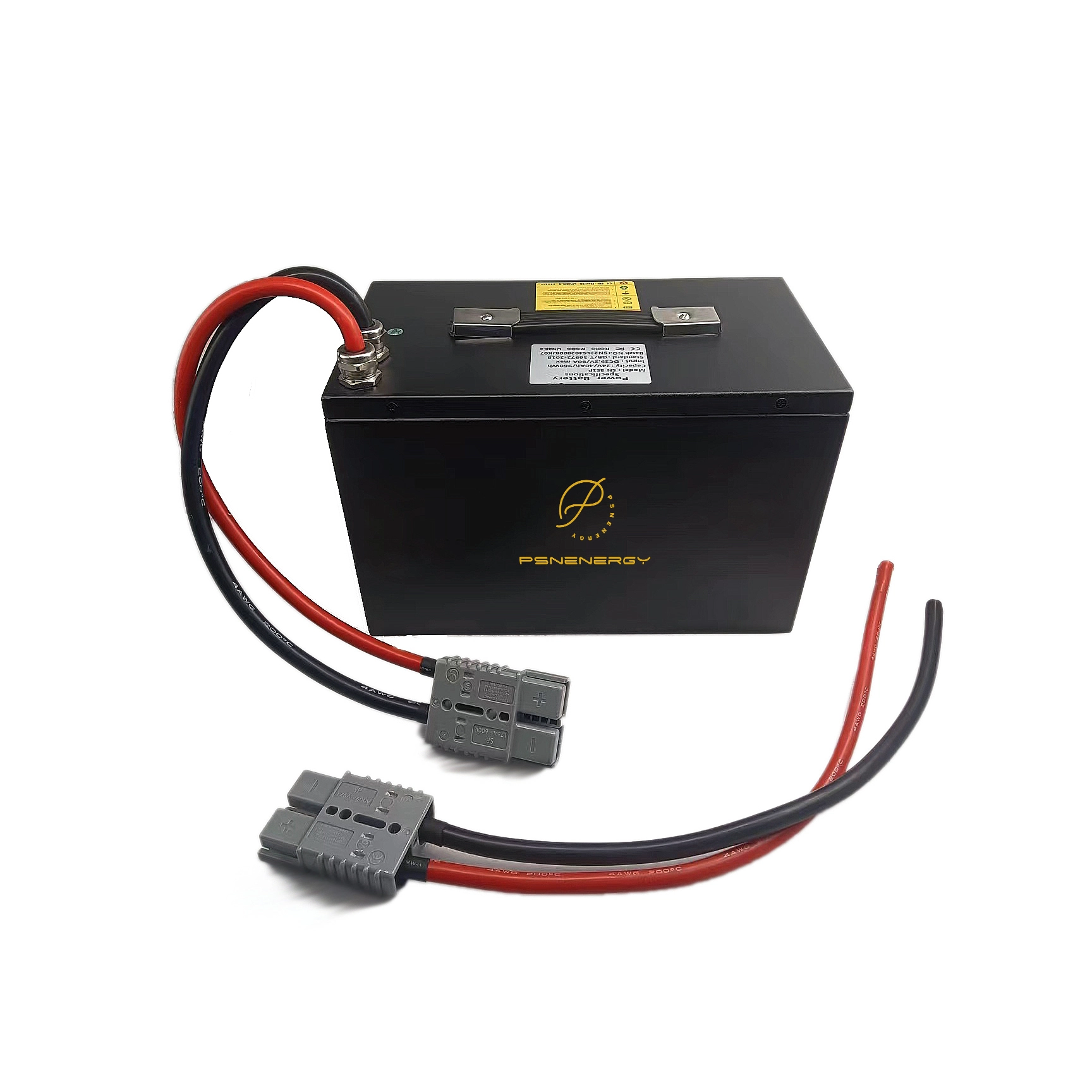

PSN-CHB-2440 Compact High Power Battery Pack
Ultra-compact high-discharge lithium battery designed for performance electric mobility and space-constrained propulsion systems.
| Key Specifications | |
| Nominal Voltage: | 24V |
| Rate Capacity: | 40Ah |
| Configuration: | 8S1P |
| Cell: | Prismatic 10C |
| Continuous Discharge: | 160A |
| Peak Discharge: | 400A |
| Max Output Power: | 5KW |
Weight: | 12KGS |
| Dimensions: | 12*7*6.5" |
| Connector: | Anderson175(Can be customermade) |
Application Section
This battery platform is engineered to deliver high discharge capability within extremely constrained installation volumes, enabling mobility designers to achieve higher performance without major structural redesign.
Enginering Features
Designed to withstand off-road vibration,dynamic load impacts and intensive power cycles,
the PSN compact power platform ensures stable output performance in real-world riding environments.
Customization Capability
Customization Options:
Discharge current tuning / BMS communication protocol / Connector type/
Housing structure adaptation / Mounting interface design
Typical Platform Variants
Model | Voltage | Capacity | Constant Current | Application |
| PSN-CHB | 24-72V | 20-40AH | 100-200A | Mini Moto |
| PSN-CHP | 60-96V | 40-60AH | 100-400A | Performance Dirt Bike |
| PSN-CHM | 36-96V | 30-75AH | 100-200A | Tow propulsion |
Need battery solution for your compact power system?
Talk to PSN engineering team today.
BATTERY
|
Cell Type: |
LS 2170LA |
|
Warranty: |
1 Years |
|
Cycle Life: |
1000 cycles at 70% DOD, |
|
Nominal Voltage: |
72V |
|
Rated Capacity: |
28Ah |
|
Energy: |
2016Wh |
|
Max. Expansion (Parallel & Series): |
1P |
|
Internal Resistance: |
≤20mΩ |
|
Certifications: |
CE, RoHS, UN38.3 |
|
Bluetooth: |
√ |
BMS
|
BMS: |
170A |
|
Max. Continuous Output Power: |
12.2KW |
|
Max. Continuous Charge Current: |
10A |
|
Max. Continuous Discharge Current: |
170A |
|
Max. Discharge Current 1 Second: |
340A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
84V ± 0.5V |
|
Recommend Charge Current: |
5A(0.25C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
QS8 Discharge/XT60 Charge (Can customermade) |
|
Weight Approx.: |
8kgs |
|
Size: |
152*152*205mm |
|
Housing Material: |
Rubber like mat tube |
