● Direct Drop-in Replacement: Perfectly fits SurRon e-bikes without frame modification, easy plug-and-play installation.
● Huge Capacity Upgrade: 60V 55Ah for much longer riding range, no more frequent recharging during off-road trips.
● Compact Size: Maintains original bike balance and handling, no interference with frame or seat.
● 160A High Discharge Current: Supports 8KW motors, delivers strong and stable power for steep climbs and heavy loads.
● Stable Voltage Output: No voltage drop under high load, consistent off-road performance at all times.
● ANT Smart BMS: Real-time monitoring of battery health, voltage, temperature and status.
● Full Multiple Protections: Overcurrent, overvoltage, overheating and short-circuit protection for safer riding.
● High Compatibility: Works with original connectors and system, no error codes or fault lights.

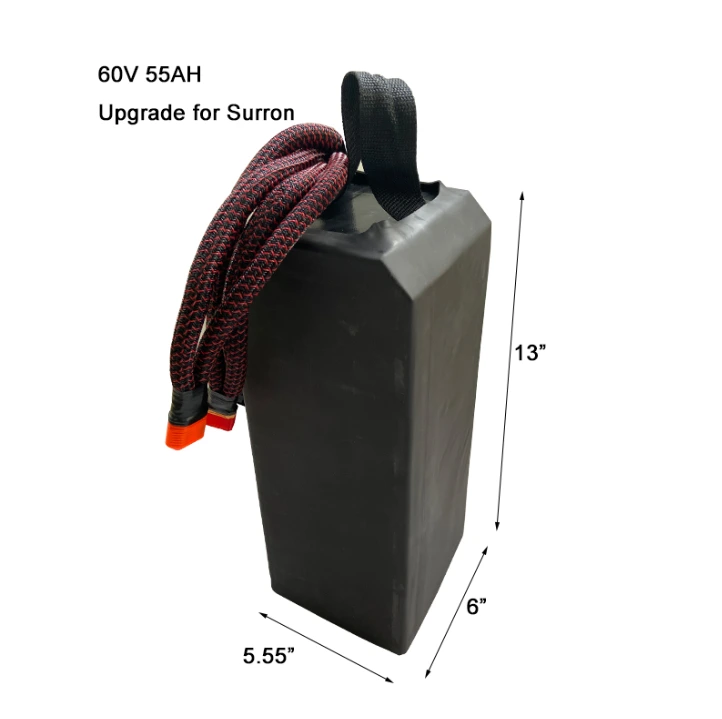

PSN-CHP-6055 Compact High Power Battery Pack
Ultra-compact high-discharge lithium battery designed for performance electric mobility and space-constrained propulsion systems.
| Key Specifications | |
| Nominal Voltage: | 60V |
| Rate Capacity: | 55Ah |
| Configuration: | 16S11P |
| Cell: | 21700 5000MAH |
| Continuous Discharge: | 200A |
| Peak Discharge: | 300A |
| Max Output Power: | 14KW |
Weight: | 15KGS |
| Dimensions: | 6*5.5*13" |
| Connector: | QS8+XT60(Can be customermade) |
Application Section
This battery platform is engineered to deliver high discharge capability within extremely constrained installation volumes, enabling mobility designers to achieve higher performance without major structural redesign.
Enginering Features
Designed to withstand off-road vibration,dynamic load impacts and intensive power cycles,
the PSN compact power platform ensures stable output performance in real-world riding environments.
Customization Capability
Customization Options:
Discharge current tuning / BMS communication protocol / Connector type/
Housing structure adaptation / Mounting interface design
Typical Platform Variants
Model | Voltage | Capacity | Constant Current | Application |
| PSN-CHB | 24-72V | 20-40AH | 100-200A | Mini Moto |
| PSN-CHP | 60-96V | 40-60AH | 100-400A | Performance Dirt Bike |
| PSN-CHM | 36-96V | 30-75AH | 100-200A | Tow propulsion |
Need battery solution for your compact power system?
Talk to PSN engineering team today.
BATTERY
|
Cell Type: |
LS 2170LA |
|
Warranty: |
1 Years |
|
Cycle Life: |
1000 cycles at 70% DOD, |
|
Nominal Voltage: |
72V |
|
Rated Capacity: |
28Ah |
|
Energy: |
2016Wh |
|
Max. Expansion (Parallel & Series): |
1P |
|
Internal Resistance: |
≤20mΩ |
|
Certifications: |
CE, RoHS, UN38.3 |
|
Bluetooth: |
√ |
BMS
|
BMS: |
170A |
|
Max. Continuous Output Power: |
12.2KW |
|
Max. Continuous Charge Current: |
10A |
|
Max. Continuous Discharge Current: |
170A |
|
Max. Discharge Current 1 Second: |
340A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
84V ± 0.5V |
|
Recommend Charge Current: |
5A(0.25C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
QS8 Discharge/XT60 Charge (Can customermade) |
|
Weight Approx.: |
8kgs |
|
Size: |
152*152*205mm |
|
Housing Material: |
Rubber like mat tube |
