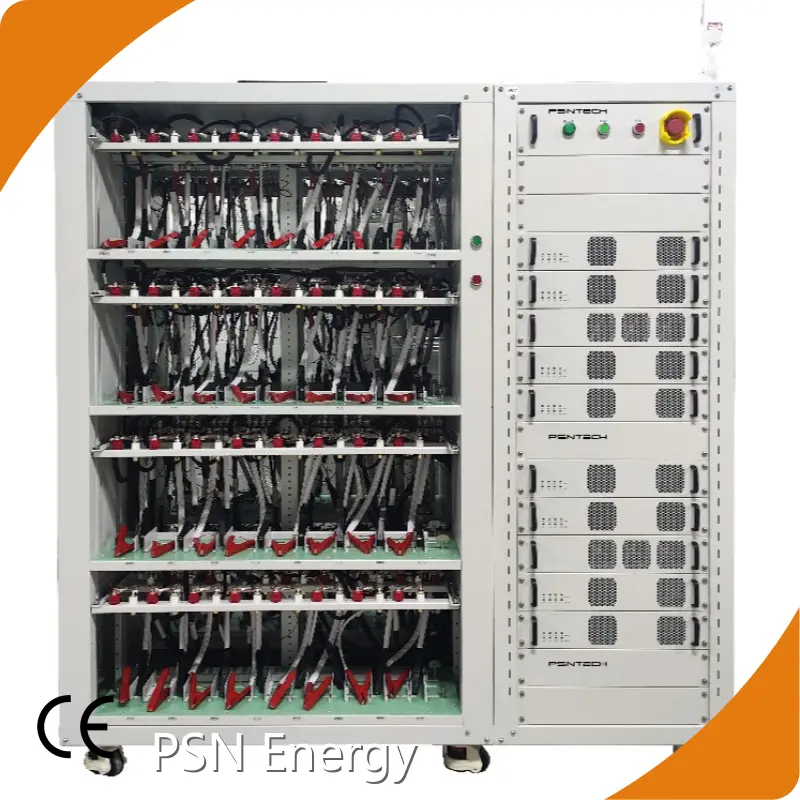

Battery Tester for Lithium Batteries Wooden Case Wholesale - PSN Energy
Product details of the battery tester for lithium batteries
Product Overview
PSN Energy battery tester for lithium batteries is made of high-grade raw materials and manufactured by using cutting-edge technology in complete compliance with industry production standards. The product is tested under the vigilance of our proficient professionals who clearly know quality standards laid down by the industry. PSN Energy's battery tester for lithium batteries can be used in different fields. This product plays an important role in the development of PSN Energy in the industry.
Product Introduction
battery tester for lithium batteries is more competitive than other products in the same category, as shown in the following aspects.
|
Model |
PSN37-64/60A |
|
Number Of Device Channels |
64 channels |
|
Overall Dimension |
Width 900mm× Depth 950mm× Height 1840mm |
|
Color |
Grey White |
|
Jig Form |
150A Power battery flat head clamp(clamp elasticity 7mm-7.5kg), compatible crocodile clip |
|
Fixture Spacing |
81mm |
|
Support Battery Specifications |
1. Battery compatible length 90-220mm; 2. Thickness 15-70mm 3. Height 80-230mm 4. Battery tabs 60-150mm |
|
Working Power Supply |
Three-phase 5 wire system AC380V;10%,50HZ |
|
Power Factor |
0.99 @220V AC, Fully loaded, power grid THDu≤2% |
|
Ac Current Distortion Rate |
<5% @220V AC, Fully loaded, power grid THDu≤2% |
|
Power Consumption |
≤23 KW |
|
Charging Efficiency Of Whole Machine |
Charge≥80%; discharge≥70% |
|
Work Environment |
Indoors, temperature is 10-30℃ under air convection. |
|
Heat-Dissipating Method |
Air cooling |
|
Voltage Testing Range |
DC 0~5V |
|
Battery Voltage Range |
Charge DC 0～4.5V；Discharge DC 4.5～2V |
|
Constant Voltage Range |
DC 2~4.5V |
|
Voltage Accuracy |
±(0.5% Reading+0.5% Full Degree) |
|
Voltage Resolution |
0.1mV |
|
Voltage Stability |
≤(±1mV) |
|
Current Range |
Charge DC 200mA～ 100A；Discharge DC 200mA～100A |
|
Accuracy Of Current |
±(0.5% Reading+0.5% Full Degre) |
|
Current Steady Reading |
≤(±1mA) |
|
Control Mode |
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system |
|
Communication Mode |
485 serial port communication (baud rate 57600)/TCP communication/chart |
|
Workflow Setting |
Up to 32 work steps and 256 cycles can be set, with the function of nested loops |
|
Charging Mode |
The function of nested loops |
|
Charge Cutoff Condition |
Constant, current, constant, voltage, -△V |
|
Discharge Mode |
Voltage, current, time, capacity |
|
Discharge Cutoff Condition |
Voltage, time, capacity |
|
Time Range |
0~ 30000 minutes/work step, time unit: min |
|
Time Accuracy |
≤±1%0 |
|
Sampling Tour Period |
1s-60s optional |
The above is the applicable battery size for Standardized Battery Capacity Testers. If you have other battery sizes,please contact us for personalized customization.
Product Advantage
Product Display
usage method:Please refer our user manual.
