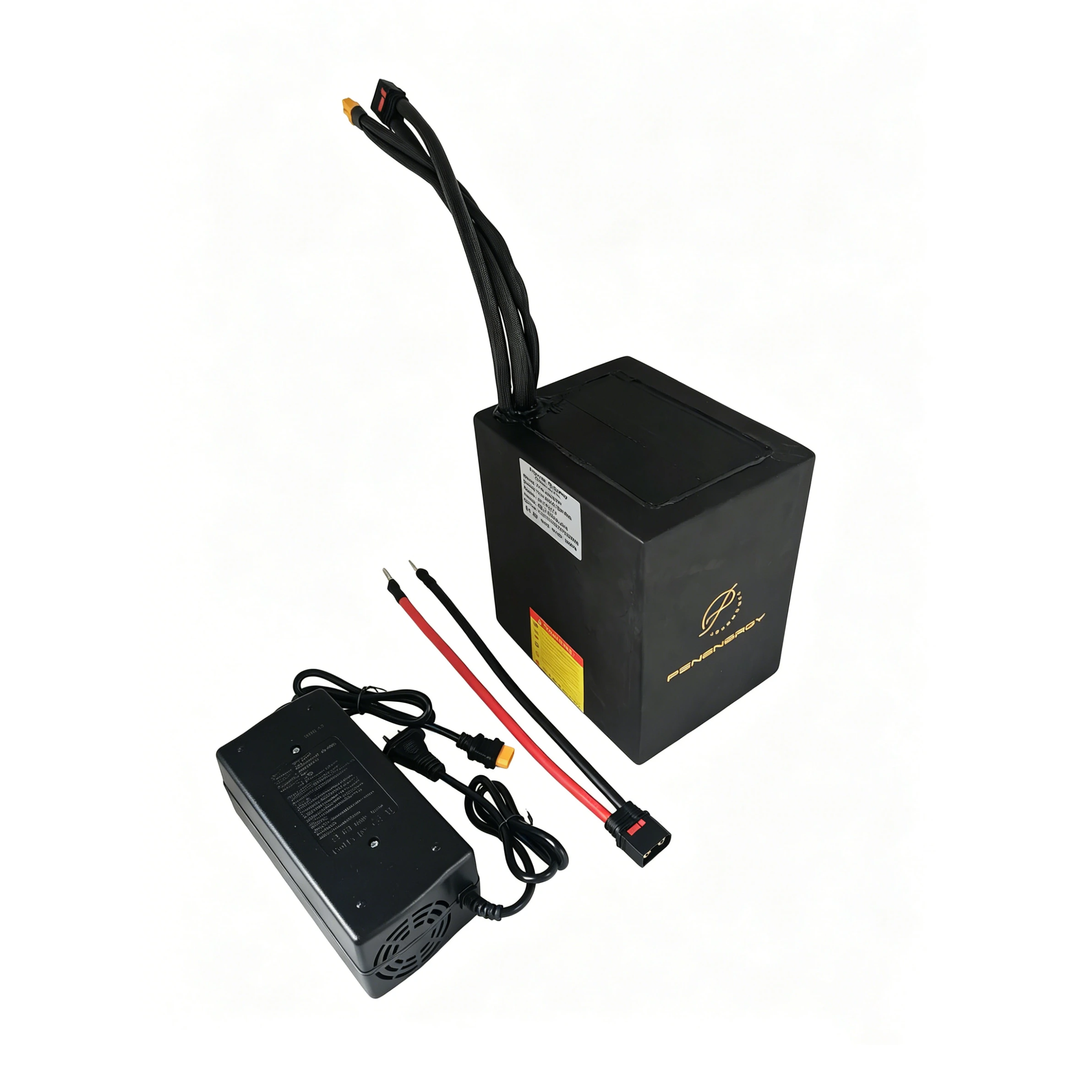

PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 1
PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 2
PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 3
PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 1
PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 2
PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 3

PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery

10C High Power And Smart BMS For Dirt Bike Upgrade performace battery

● Born for off road ebike upgrade(Razor,Boom,Tutti and etc)

Widely Suitable for 72V dirt bike upgrade:small size but big power,suit for most of the dirt bike frame

EV Grade A  grade 10C cylindrical 21700 Cells: support 500+ cycles @70%DOD and provide a more uniform in-force area and better heat dissipation.

Low-Temperature Cut-Off Protection: preventing charging below 0℃ to protect the battery and extend its life, resuming charging at  5℃, and cutting off discharging below -20 0℃;

Smart Bluetooth: functions of auto-connection, smart control, monitoring battery status, and battery system with Smart App.

ANT Smart BMS: Monitor the voltage of each single battery in real time;Easyuse UI, overload protection with auto-recovery; .Active balance help maintain your battery automatically and extend your battery life

2016 Wh Energy: runs 0.5-1 hours based on different speed and different motor

Larger Output Power: Max 20.16KW for peak

Fast Charging Ways: 5A charger let you finished the charging in 5.6 hours

Best Service: 24-hour response & 1-year warranty.Free cable leads to controller



5.0
design customization

    oops...!

    no product data.

    Go to homepage
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 4


    PSN-CHB-7228 Compact High Power Battery Pack

          Ultra-compact high-discharge lithium battery designed for performance electric                      mobility and space-constrained propulsion systems.


    7228
    Key Specifications
    Nominal Voltage:72V
    Rate Capacity:28Ah
    Configuration:20S7P
    Cell:21700 10C
    Continuous Discharge:170A
    Peak Discharge:280A
    Max Output Power:20KW

    Weight:

    11KGS
    Dimensions:8.25*6*8"
    Connector:QS8+XT60


    Request Technical Details
    Contact Engineering Team
    off road ebike upgrade

    Application Section

    This battery platform is engineered to deliver high discharge capability within extremely constrained installation volumes, enabling mobility designers to achieve higher performance without major structural redesign.

    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 7
    Electric dirt bike upgrade
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 8
    Mini bike performance build
    Choose us, and we promise to do everything needed to ensure a successful and satisfactory working
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 9
    Drift kart power system
    We boast offering unmatched, cost-effective manufacture that caters to industry.
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 10
    Compact marine propulsion
    ustomers choose us because we provide leading technology, deliver unmatched products and services.
    1 (22)
    Robotics mobility platform

    Enginering Features

    Designed to withstand off-road vibration,dynamic load impacts and intensive power cycles,

    the PSN compact power platform ensures stable output performance in real-world riding environments.

    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 12
    High-current copper-nickel busbar architecture
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 13
    Reinforced vibration-resistant internal structure
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 14
    Optimized thermal conduction layout
    PSN Energy 72V 28Ah 170A discharge Off-road Ebike Upgrade Battery 15
    Custom BMS integration capability
    模块2-5 (4)
    Flexible connector and interface configuration

    Customization Capability

    Customization Options:

    Discharge current tuning BMS communication protocol Connector type/

    Housing  structure adaptation / Mounting interface design


    Typical Platform Variants

    Model

    VoltageCapacityConstant CurrentApplication
    PSN-CHB24-72V20-40AH100-200AMini Moto
    PSN-CHP60-96V40-60AH100-400APerformance Dirt Bike
    PSN-CHM36-96V30-75AH100-200A

    Tow propulsion


    Need battery solution for your compact power system?

    Talk to PSN engineering team today.

    Send Inquiry

    BATTERY

    Cell Type:

    LS 2170LA

    Warranty:

    1 Years

    Cycle Life:

    1000 cycles at 70% DOD,

    Nominal Voltage:

    72V

    Rated Capacity:

    28Ah

    Energy:

    2016Wh

    Max. Expansion (Parallel & Series):

    1P

    Internal Resistance:

    ≤20mΩ

    Certifications:

    CE, RoHS, UN38.3

    Bluetooth:



    BMS

    BMS:

    170A

    Max. Continuous Output Power:

    12.2KW

    Max. Continuous Charge Current:

    10A

    Max. Continuous Discharge Current:

    170A

    Max. Discharge Current 1 Second:

    340A



    CHARGE

    Charge Method:

    CC/CV

    Charge Voltage:

    84V ± 0.5V

    Recommend Charge Current:

    5A(0.25C)



    TEMPERATURE

    Charge Temperature:

    0℃ to 50℃/32℉ to 122℉

    Discharge Temperature:

    -20℃ to 60℃ / -4℉ to 140℉

    Storage Temperature:

    -10℃ to 50℃/14℉ to 122℉

    Low-Temperature Protection:

    Yes (32℉/0℃)

    Low-Temperature Charging Protection Auto Recovery:

    Yes (41℉/5℃)



    OTHERS

    Terminals:

    QS8 Discharge/XT60 Charge

    (Can customermade)

    Weight Approx.:

    8kgs

    Size:

    152*152*205mm

    Housing Material:

    Rubber like mat tube





    FAQ

    1
    How about the Battery Performance?
    Range: It depend on your motor power and the road situation. Usually you can use your battery capacity /motor power*your speed. It is a range idea FYI..final range will depend on detail situation Maximum Speed: Battery will not effect your speed,but based on your controller
    2
    How can I download the Bluetooth App?
    Apple APP Store and Google play. Download and open the app to directly scan the QR code and connect the battery or search for nearby Bluetooth batteries.
    3
    How should I charge the battery and what’s Charging time?
    Charging Time: use our 84V 5 A charger,it can be full charged in 5.6 hours Charging Method: It is recommended to use the original charger for slow charging, which can better protect the battery and extend its service life. Although there are fast chargers on the market, frequent use of fast charging may cause certain damage to the battery and shorten its service life. Charging Precautions: When charging, choose a well-ventilated, dry, and non-flammable environment, and avoid charging in high-temperature, humid, or areas with open flames. At the same time, do not overcharge. Once the battery is fully charged, unplug the charger in time to prevent battery bulging and damage.
    4
    How about the Battery Life time?
    Normal Service Life: Generally, the normal service life of a 72V 28AH lithium battery is about 2 - 3 years, and the number of charge-discharge cycles can reach 800 - 1200 times. However, this is only the theoretical service life, and the actual service life will be affected by various factors such as usage frequency, charging method, and usage environment. Influencing Factors: Overcharging and Overdischarging: Frequently discharging the battery completely before recharging or overcharging for a long time will accelerate the sulfation and aging of the battery plates and shorten the battery life. High or Low Temperature Environment: Using or charging the battery in a high-temperature environment will intensify the internal chemical reactions of the battery, accelerating battery water loss and plate aging; in a low-temperature environment, the charging and discharging efficiency of the battery will decrease, and the electrode materials may be damaged, also affecting the battery life. High Current Discharge: During acceleration and uphill climbs of off-road electric bicycles, high current discharge occurs. Frequent such operations will cause irreversible damage to the battery and reduce the number of charge-discharge cycles.
    5
    How to maintain the Battery ?
    Lithium batteries have a significantly longer lifespan compared to lead-acid batteries,  lithium golf cart batteries can last 10+ years.
    6
    What other Safety Precautions I should to know?
    Prevent Short Circuit: When installing, disassembling the battery, or performing vehicle maintenance, pay attention to avoid short-circuiting the positive and negative poles of the battery, otherwise, it may cause dangerous situations such as fire or battery explosion. Fire and Explosion Prevention: Keep away from open flames and flammable materials when charging because the battery may produce flammable gases such as hydrogen during the charging process. If it encounters an open flame, an explosion may occur. At the same time, do not smoke or use open flames near the battery. Proper Use of the Battery: Do not disassemble or modify the battery privately, and do not use inferior chargers or batteries to avoid potential safety hazards. If you find abnormal situations such as battery bulging, leakage, or overheating, stop using it immediately and replace or repair the battery in time.
