Product details of the rechargeable lithium aa batteries
Product Description
PSN Energy rechargeable lithium aa batteries is delicately designed and manufactured to meet international standards. The quality of this product has been highly evaluated by authoritative testing organizations based on a strict performance test and quality test. The widespread application of this product is an inevitable trend.

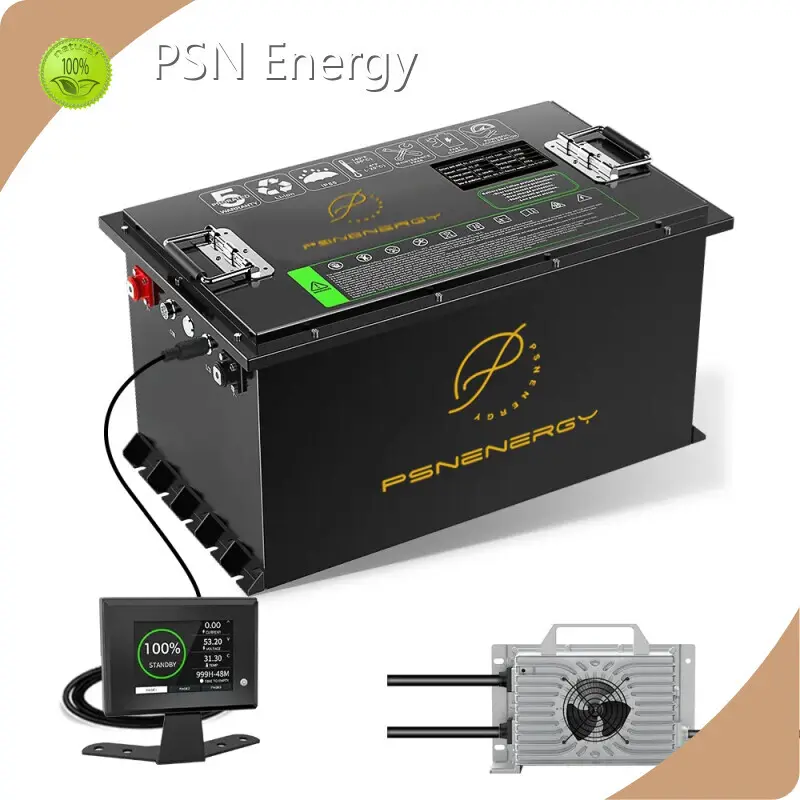

Drop-in Replace Your Lead-Acid Battery
One 48(51.2)V 100Ah lithium battery equals to 8* 6V 210Ah lead-acid batteries in usable energy. With 80% lighter in weight and 50% smaller in size, we make your golf cart more maneuverable, faster and with less wear & tear. Most importantly, we are more Cost-Effective to help you save over $320 per year in capital and technical maintenance costs.
Consist of Automotive level Grade A LiFePO4 Prismatic battery cells
Using Automotive Grade A battery cells offer superior performance, longevity, and safety. They provide higher energy density, faster charging, and more stable power output. With lower internal resistance, they minimize heat generation and improve efficiency. These premium cells ensure a longer lifespan, deeper discharge cycles, and enhanced reliability, making them an excellent choice for golf carts.
Monitor your battery by connect APP
Lithium batteries with mobile app connectivity allow real-time monitoring of battery status, including charge level, temperature, voltage, and health. This enhances convenience, improves maintenance, and helps detect issues early, ensuring optimal performance and a longer lifespan for golf cart batteries.
Inlcudes a bracket specifically designed for securing the LCD screen
Build Your Own Brand Golf Cart Battery
Customize your logo to establish a unique brand identity and enhance market recognition. A personalized logo boosts credibility, builds customer trust, and sets your brand apart. By branding your lithium batteries, you create a professional image, strengthen loyalty, and increase business growth in a competitive market.
|
Cell Type:
|
LiFePO4 Prismatic 3.2V 105Ah
|
|
Warranty:
|
5 Years
|
|
Cycle Life:
|
4000+Times
|
|
Nominal Voltage:
|
51.2V
|
|
Rated Capacity:
|
105Ah
|
|
Energy:
|
5376Wh
|
|
Certificate:
|
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati
|
|
Charger:
|
Built-in waterproof charger (optional)
|
|
BMS：
|
105A
|
|
Max. Continuous Discharge Current：
|
105A
|
|
Max. Discharge Current 10 Second：：
|
200A
|
|
Charge Method:
|
CC/CV
|
|
Charge Voltage:
|
57.6V ± 0.8V
|
|
Recommend Charge Current:
|
20A(0.2C)
|
|
Charge Temperature:
|
0℃ to 50℃/32℉ to 122℉
|
|
Discharge Temperature:
|
-20℃ to 60℃ / -4℉ to 140℉
|
|
Storage Temperature:
|
-10℃ to 50℃/14℉ to 122℉
|
|
Low-Temperature Protection:
|
Yes (32℉/0℃)
|
|
Low-Temperature Charging Protection Auto Recovery:
|
Yes (41℉/5℃)
|
|
Terminals:
|
Can be customization
|
|
Weight Approx.:
|
45kgs
|
|
Size:
|
509*333*245mm
|
|
Housing Material:
|
metal case
|
|
Protection Class:
|
IP54
|
1
What to do when receive the battery?
Please charge the Bluetooth battery first after receiving it. This will ensure that the battery can be turned on and the Bluetooth connection is established.
Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger to charge the battery and turn on the battery, it can be used normally.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
2
How can I download the Bluetooth App?
Apple APP Store and Google play. Download and open the app to directly scan the QR code and connect the battery or search for nearby Bluetooth batteries.
3
How to Charge the 48V 100Ah Golf Cart Lithium LiFePO4 battery?
We recommend using a 58.4V battery charger to maximize the capacity
Recommend charging voltage: 53.25V ~ 54.75V
Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
4
Do I need a special charger for lithium golf cart batteries?
You need the correct charger for your particular Lithium battery. Using a charger designed specifically for lithium batteries ensures optimal performance and longevity.
5
What is the life expectancy of a lithium golf cart battery?
Lithium batteries have a significantly longer lifespan compared to lead-acid batteries, lithium golf cart batteries can last 10+ years.
6
How will installing lithium batteries improve the performance of a golf cart?
Lithium batteries can deliver more power to your golf cart than traditional lead-acid batteries. This means you can tackle hills and inclines with ease, and your golf cart will have a higher top speed.
7
Is a 48V Lithium Golf Cart Battery Better Than 36V?
While 36V setups have been popular in golf carts for many years and perform well, there are notable advantages to using a 48V system:
● Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.
● Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.
● Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.
● Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
Company Feature
• An elite team is of great importance for PSN Energy's development. Our team is excellent and highly-educated, who is the motivation for us to make sustainable progress.
• Our products are favored by our customers with safe and environmentally friendly features. Currently, our products are sold well in various regions of China. In addition, we are also preparing to open up foreign markets and promote products to the world.
• We always render our customers with advanced technical support and sound after-sales service.
As the manufacturer of Lithium battery pack,lithium battery tester,lithium battery swapping station, PSN Energy advocates small profits but quick turnover. We are mainly engaged in the bulk purchase and we also have retailing. We have discounts for large-quantity order. Different discounts will be offered on different products. For detailed information, please contact us.
