Focus on customer made high quality power lithium battery and test equiment to very application.

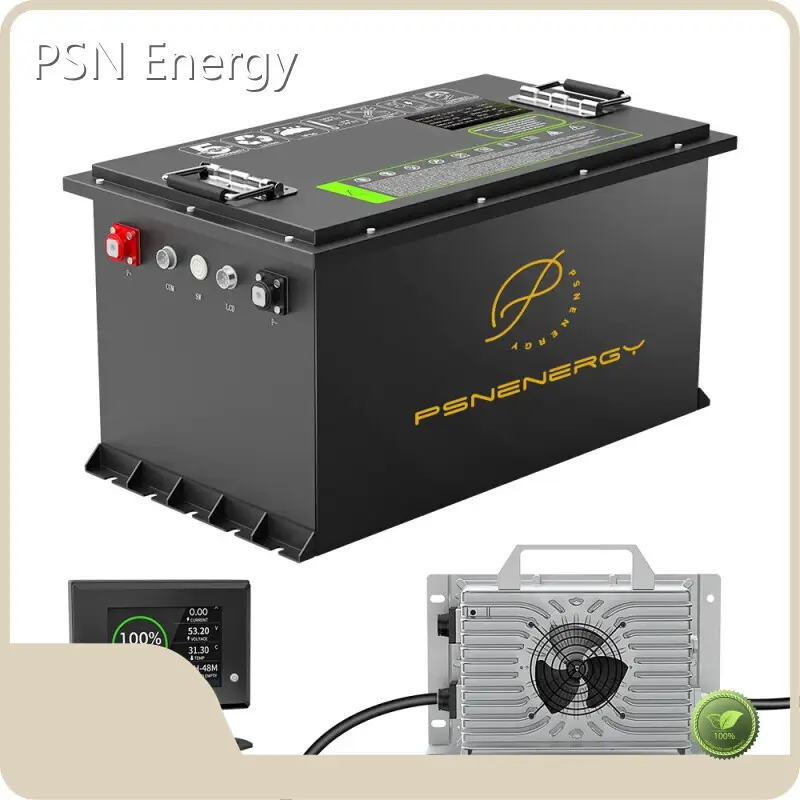

Lithium Ev Battery Pack - - PSN Energy
BATTERY
|
Cell Type: |
LiFePO4 Prismatic 3.2V 105Ah |
|
Warranty: |
5 Years |
|
Cycle Life: |
4000+Times |
|
Nominal Voltage: |
51.2V |
|
Rated Capacity: |
105Ah |
|
Energy: |
5376Wh |
|
Certificate: |
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati |
|
Charger: |
Built-in waterproof charger (optional) |
BMS
|
BMS： |
105A |
|
Max. Continuous Discharge Current： |
105A |
|
Max. Discharge Current 10 Second：： |
200A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
57.6V ± 0.8V |
|
Recommend Charge Current: |
20A(0.2C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
Can be customization |
|
Weight Approx.: |
45kgs |
|
Size: |
509*333*245mm |
|
Housing Material: |
metal case |
|
Protection Class: |
IP54 |
FAQ
Company Advantages
· PSN Energy Lithium Ev Battery Pack is manufactured using premium raw materials from reliable vendors.
· The product abides by international quality standards.
· Shenzhen PSN Energy Co.,Ltd actively meets the needs of customers, and become a reliable partner for customers.
Company Features
· As a domestically competitive producer of Lithium Ev Battery Pack, Shenzhen PSN Energy Co.,Ltd is expanding its manufacturing scale.
· The Lithium Ev Battery Pack we offer is highly recommended by customers for its well-made quality and unique design.
· We have made a lot of change that’s doing a lot of good for the environment. We have used products that reduce our reliance on natural resources, such as solar system, and adopted products that are manufactured with recycled materials.
Application of the Product
The Lithium Ev Battery Pack of PSN Energy can meet the different needs of different customers.
PSN Energy is rich in industrial experience and is sensitive about customers' needs. We can provide comprehensive and one-stop solutions based on customers' actual situations.
BATTERY
|
Cell Type: |
LiFePO4 Prismatic 3.2V 105Ah |
|
Warranty: |
5 Years |
|
Cycle Life: |
4000 +Times |
|
Nominal Voltage: |
51.2V |
|
Rated Capacity: |
105Ah |
|
Energy: |
5376Wh |
|
Certifications: |
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati |
|
Charger: |
Built-in waterproof charger (optional) |
|
Bluetooth: |
√ |
BMS
|
BMS： |
105A |
|
Max. Continuous Discharge Current： |
105A |
|
Max. Discharge Current 10 Second： |
200A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
57.6V ± 0.8V |
|
Recommend Charge Current: |
20A(0.2C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
509*333*245mm |
|
Weight Approx.: |
45kgs |
|
Size: |
509*333*245mm |
|
Housing Material: |
metal case |
|
Protection Class: |
IP54 |
FAQ
Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger to charge the battery and turn on the battery, it can be used normally.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Recommend charging voltage: 53.25V ~ 54.75V
Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
● Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.
● Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.
● Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.
● Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
