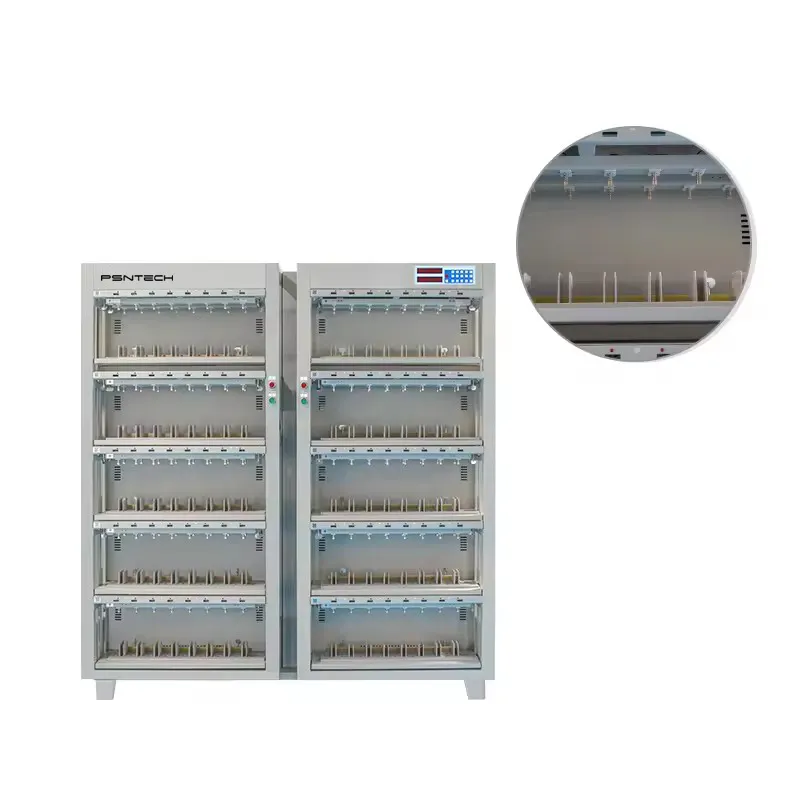

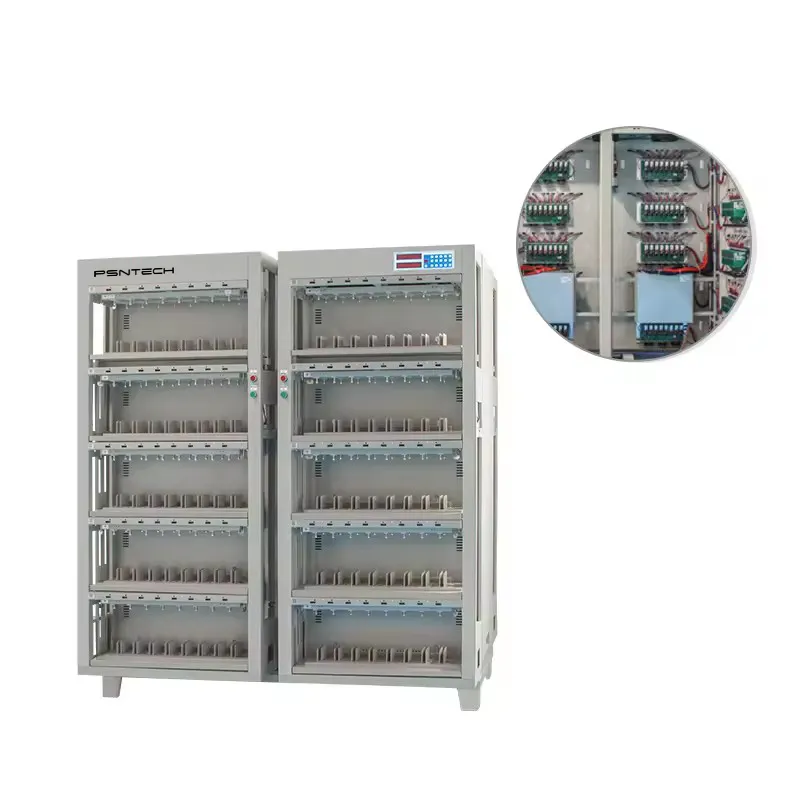

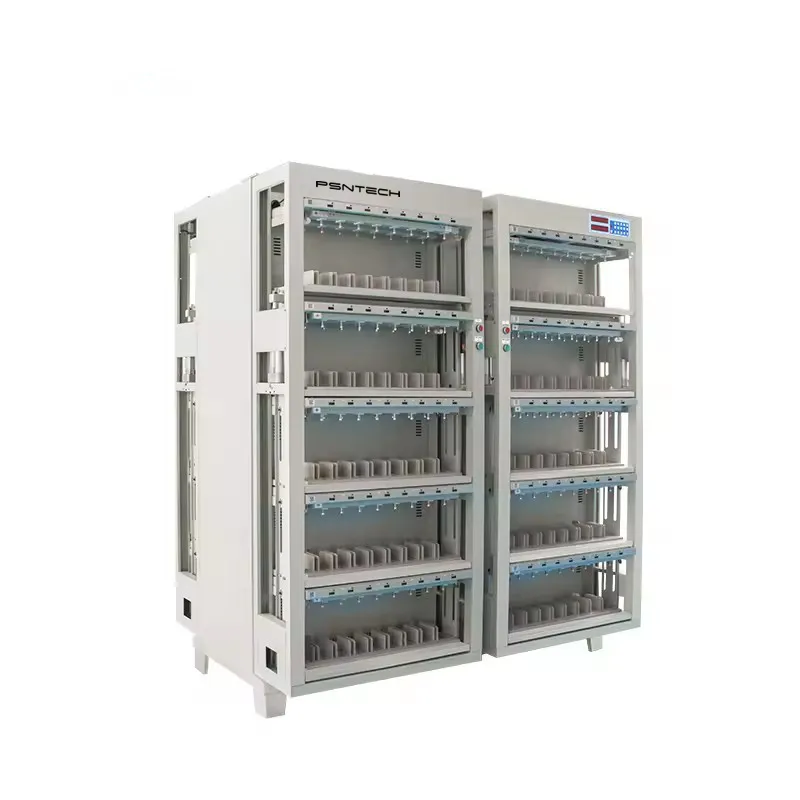

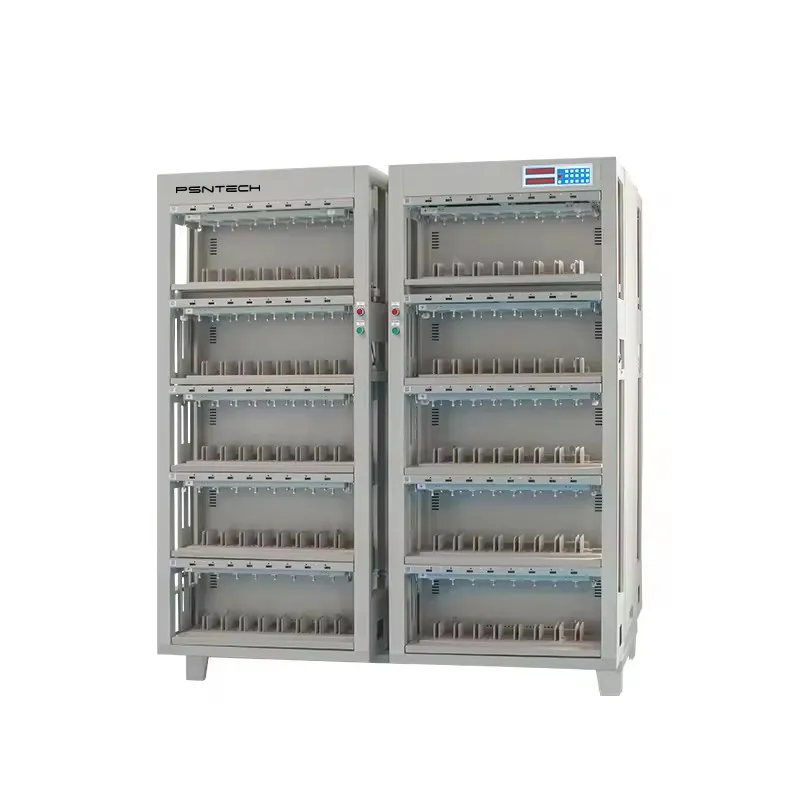

LiFePO4 Capacity Tester PSN37-0516040 by PSN Energy
Product details of the LiFePO4 Capacity Tester
Product Description
The provided LiFePO4 Capacity Tester is manufactured with utmost precision with the use of exceptional quality raw materials and the pioneering technology. With a wide variety and a complete range of specifications, Shenzhen PSN Energy Co.,Ltd's LiFePO4 Capacity Tester is of good quality and high reputation. LiFePO4 Capacity Tester is produced from design to production which are under exquisite management to ensure the quality.
| Model | PSN37-0516040 |
| Number Of Device Channels | 160 channels |
| Overall Dimension | Width 1880mm× Depth 1008mm× Height 2033mm |
| Color | White |
| Jig Form | Electric clamp opening, enhanced flat head clamp |
| Fixture Spacing | 81mm |
| Support Battery Specifications | 1. Battery compatible length 90-210mm，2. Thickness 16-70mm，3. Height 80-230mm，4. Battery tabs 40-150mm |
| Working Power Supply | Three-phase 5 wire system AC380V±10%,50HZ |
| Power Factor | 0.99 @220V AC, Fully loaded, power grid THDu≤2% |
| Ac Current Distortion Rate | <5% @220V AC, Fully loaded, power grid THDu≤2% |
| Power Consumption | ≤28 KW |
| Charging Efficiency Of Whole Machine | Charge≥80%; discharge≥70% |
| Work Environment | Indoors, temperature is 10-30℃ under air convection. |
| Heat-Dissipating Method | Air cooling |
|
Voltage Testing Range |
DC 0~5V |
|
Battery Voltage Range |
Charge DC 0～4.5V；Discharge DC 4.5～2V |
|
Constant Voltage Range |
DC 2~4.5V |
|
Voltage Accuracy |
±(0.5% Reading+0.5% Full Degree) |
|
Voltage Resolution |
0.1mV |
|
Voltage Stability |
≤(±1mV) |
|
Current Range |
Charge DC100mA～ 40A；Discharge DC 100mA～40A |
|
Accuracy Of Current |
±(0.5% Reading+0.5% Full Degre) |
|
Current Steady Reading |
≤(±1mA) |
|
Control Mode |
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system |
|
Communication Mode |
485 serial port communication (baud rate 57600)/TCP communication/chart |
|
Workflow Setting |
Up to 32 work steps and 256 cycles can be set, with the function of nested loops |
|
Charging Mode |
The function of nested loops |
|
Charge Cutoff Condition |
Constant, current, constant, voltage, -△V |
|
Discharge Mode |
Voltage, current, time, capacity |
|
Discharge Cutoff Condition |
Voltage, time, capacity |
|
Time Range |
0~ 30000 minutes/work step, time unit: min |
|
Time Accuracy |
≤±1%0 |
|
Sampling Tour Period |
1s-60s optional |
Product Advantage

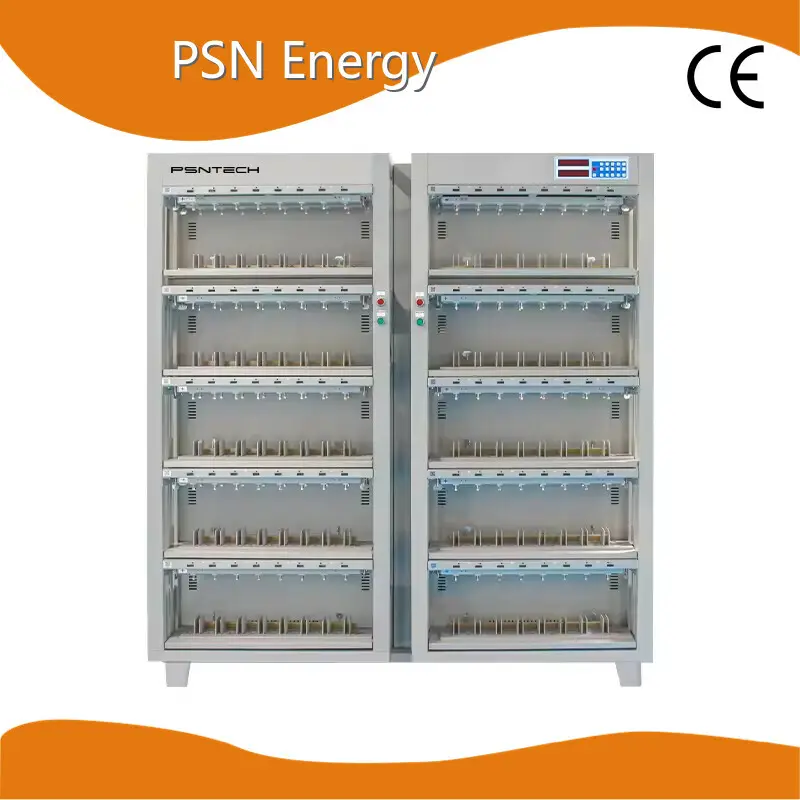

Product Display
