LiFePO4 Battery Capacity Tester 1150*950*1900mm - - PSN Energy
Product details of the LiFePO4 Battery Capacity Tester
Product Overview
The production process of PSN Energy LiFePO4 Battery Capacity Tester follows an advanced technology. Strict quality control: the product is of high quality, which is a result of strict quality control in the whole process. The responsive QC team takes full charge of its quality. The LiFePO4 Battery Capacity Tester produced by our company is suitable for various occasions in industry. What has been always attracting customers in PSN Energy is its good quality LiFePO4 Battery Capacity Tester and professional service.
Product Information
With a focus on quality, PSN Energy pays great attention to the details of LiFePO4 Battery Capacity Tester.
|
Model |
PSN-BTS100-40-400 |
||
|
Test Item |
Details |
Test Range |
Resolution |
|
Open circuit voltage |
Open circuit voltage |
10-100V |
2mV |
|
AC internal impedance |
AC internal resistance test |
0-1000mV |
1mV |
|
Discharge test |
Starting voltage |
0-100V |
2mV |
|
End voltage |
0-100V |
2mV |
|
|
discharge current |
0.1-300A |
1mA |
|
|
Discharge time |
0-60S |
1mS |
|
|
Discharge over current test |
Over discharge current |
10-600A |
1mA |
|
Over current delay |
0-30S |
1mS |
|
|
Charging test |
Starting voltage |
10-100V |
2mV |
|
End voltage |
10-100V |
2mV |
|
|
Charge current |
0.1A-100A |
1mA |
|
|
Charge time |
0-60S |
1mS |
|
|
Charging protection test |
Charging overcurrent |
4-100A |
1mA |
|
Charging delay |
0-30S |
0.1mS |
|
|
resistanceR1/R2 |
NTC |
0-1000KΩ |
0.1KΩ |
|
Sustainable output power |
10KW |
||
|
Sustainable load power |
30KW |
||
|
Online mode |
Serial communication (RS232, which can be used by multiple computers online) |
||
|
Test data |
The generated data table is automatically saved and can be exported to excel |
||
|
Barcode management |
Support bar code startup and binding test data |
||
|
Warranty Period |
1Year |
||
|
Free software upgrade service |
Upgrade for free for life until the hardware is incompatible |
||
|
Heat dissipation |
Ventilation system and forced air cooling |
||
|
Dimension |
1150*950*1900mm |
||
|
Weight |
200KG |
||
|
Channel Qty |
1 |
||
|
Spare Parts |
Computer, test pen line, user manual, computer software, etc |
||

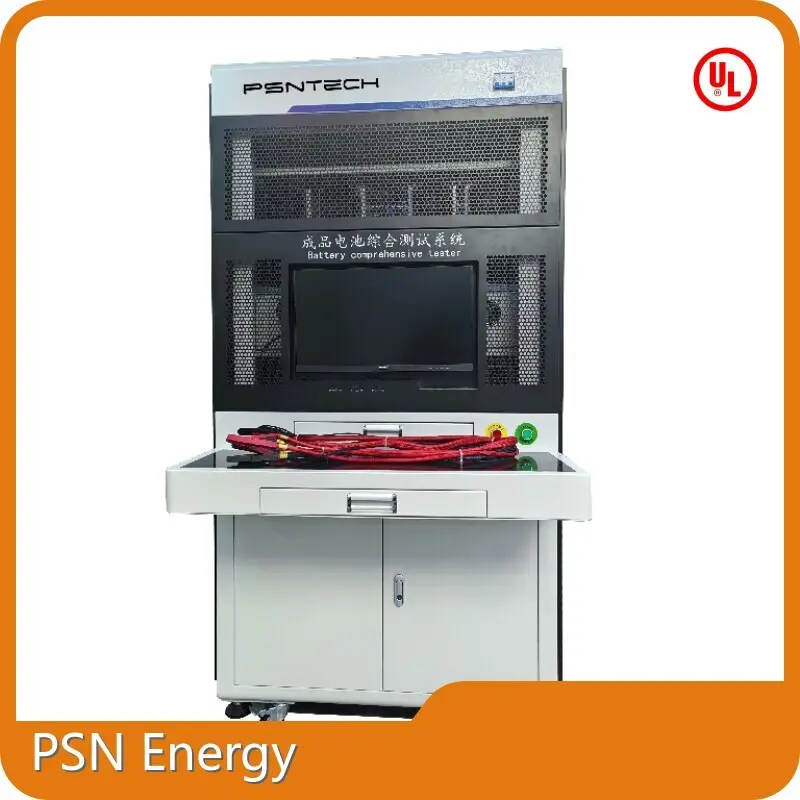

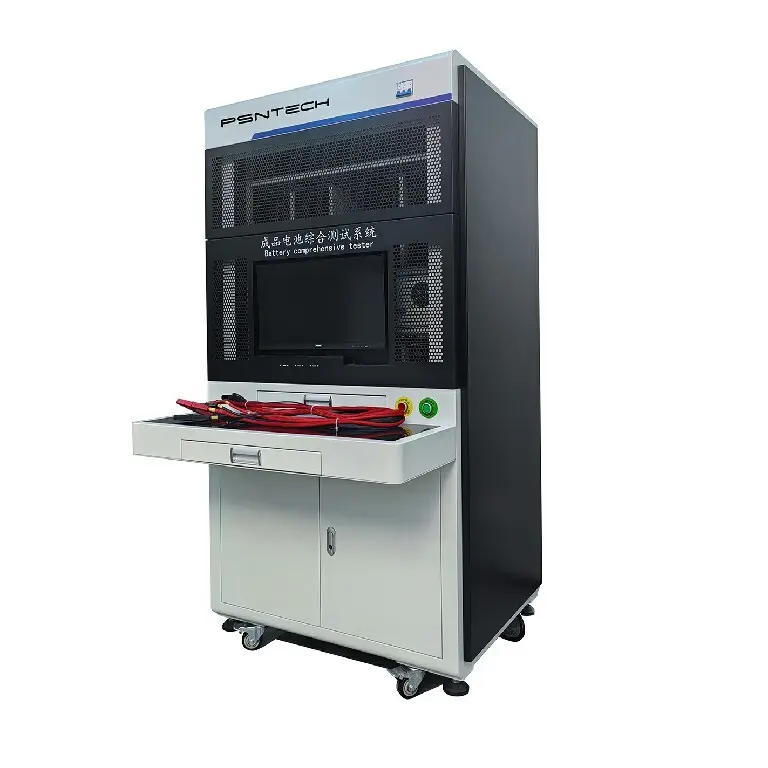

BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.
The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.
Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.
Model no.:PSN-BTS100-100-600
Purpose: Used for testing semi-finished and finished battery packs below 100V
Basic test items
If you need customermade function please contact with our sales
