Lead Acid Battery Capacity Tester 950*1150*1880mm - - PSN Energy
Company Advantages
· PSN Energy Lead Acid Battery Capacity Tester has a useful and desirable design.
· This product has established a reputation for quality because appropriate quality management systems conforming to the International Standard ISO 9001 requirements are established and implemented for its production.
· All of Shenzhen PSN Energy Co.,Ltd's manufacturing facilities conform to the very latest quality management standards.
|
Model |
PSN-BTS100-40-400 |
||
|
Test Item |
Details |
Test Range |
Resolution |
|
Open circuit voltage |
Open circuit voltage |
10-150V |
2mV |
|
AC internal impedance |
AC internal resistance test |
0-1000mV |
1mV |
|
Discharge test |
Starting voltage |
0-150V |
2mV |
|
End voltage |
0-150V |
2mV |
|
|
discharge current |
0.1-200A |
1mA |
|
|
Discharge time |
0-60S |
1mS |
|
|
Discharge over current test |
Over discharge current |
10-400A |
1mA |
|
Over current delay |
0-30S |
1mS |
|
|
Charging test |
Starting voltage |
10-150V |
2mV |
|
End voltage |
10-150V |
2mV |
|
|
Charge current |
0.1A-200A |
1mA |
|
|
Charge time |
0-60S |
1mS |
|
|
Charging protection test |
Charging overcurrent |
4-200A |
1mA |
|
Charging delay |
0-30S |
0.1mS |
|
|
resistanceR1/R2 |
NTC |
0-1000KΩ |
0.1KΩ |
|
Sustainable output power |
30KW |
||
|
Sustainable load power |
35KW |
||
|
Online mode |
Serial communication (RS232, which can be used by multiple computers online) |
||
|
Test data |
The generated data table is automatically saved and can be exported to excel |
||
|
Barcode management |
Support bar code startup and binding test data |
||
|
Warranty Period |
1Year |
||
|
Free software upgrade service |
Upgrade for free for life until the hardware is incompatible |
||
|
Heat dissipation |
Ventilation system and forced air cooling |
||
|
Dimension |
950*1150*1880mmmm |
||
|
Weight |
140KG |
||
|
Channel Qty |
1 |
||
|
Spare Parts |
Computer, test pen line, user manual, computer software, etc |
||

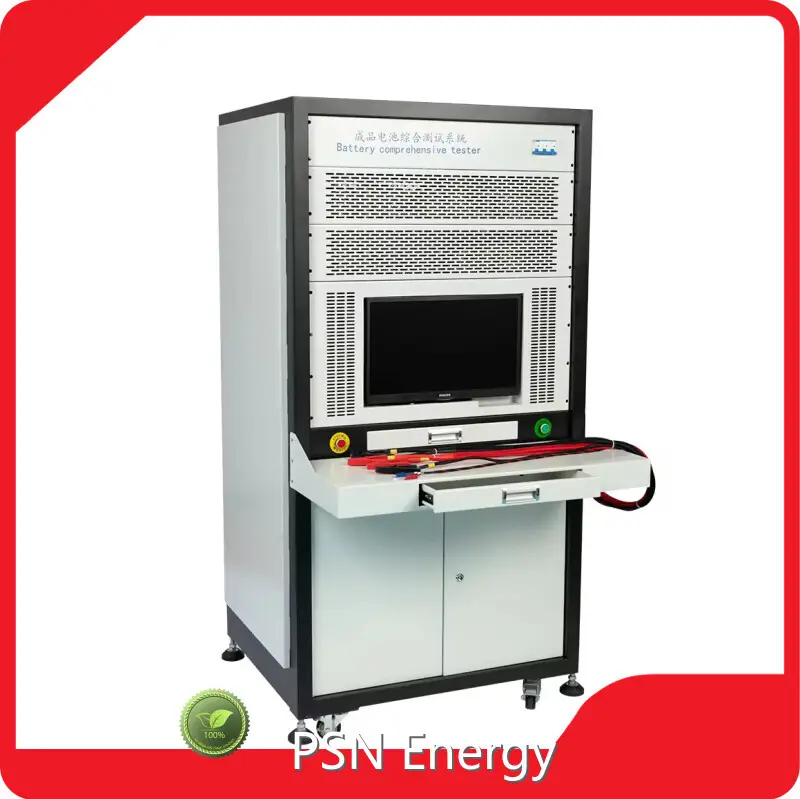

BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.
The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.
Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.
Model no.:PSN-BTS150-200-400
Purpose: Used for testing semi-finished and finished battery packs below 100V
Basic test items
matters needing attention:Can customermade the current as per your request.
Product Display
usage method:Please refer our user manual or follow our youtube channel .
FAQ
Company Features
· Since its establishment, Shenzhen PSN Energy Co.,Ltd has delivered world-class Lead Acid Battery Capacity Tester to customers worldwide.
· PSN Energy excels others for its great quality Lead Acid Battery Capacity Tester.
· Shenzhen PSN Energy Co.,Ltd currently has gained the recognition of more clients because of the high excellent service. Inquiry!
Product Comparison
Compared with other products in the same category, Lead Acid Battery Capacity Tester has outstanding advantages which are mainly reflected in the following points.
