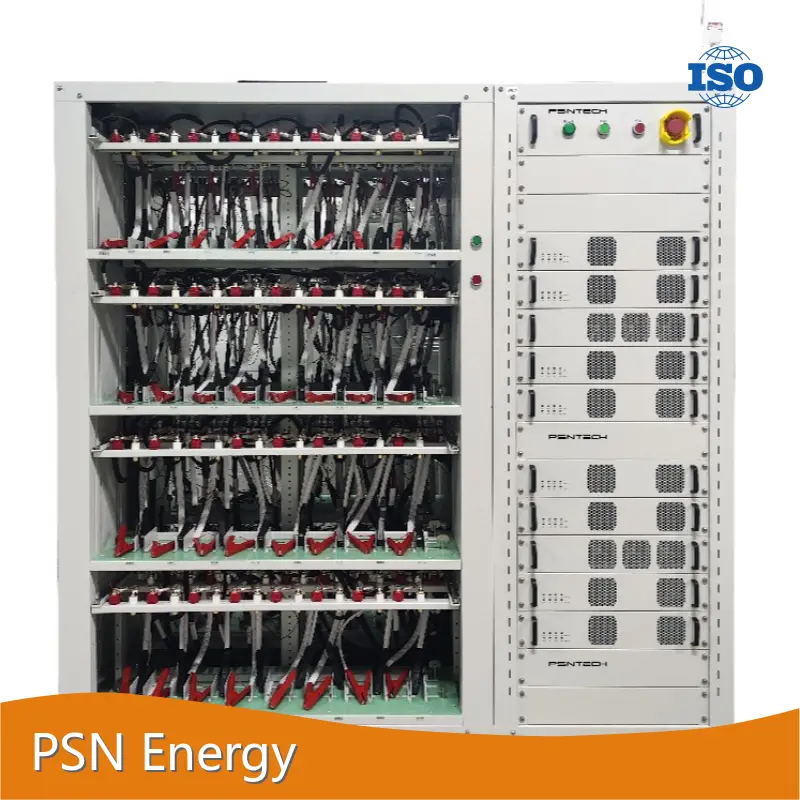

Cell Grading Machine White by PSN Energy
Company Advantages
· In order to strictly control quality, Shenzhen PSN Energy Co.,Ltd selects cell grading machine as raw material.
· Its prototype is continually tested against a wide variety of key performance criteria before going into production. It is also tested for conformity with a series of international standards.
· Unmatched expertise of PSN Energy enables us to serve clients with utmost accuracy than our industry competitors.
|
Model |
PSN37-64/60A |
|
Number Of Device Channels |
64 channels |
|
Overall Dimension |
Width 900mm× Depth 950mm× Height 1840mm |
|
Color |
Grey White |
|
Jig Form |
150A Power battery flat head clamp(clamp elasticity 7mm-7.5kg), compatible crocodile clip |
|
Fixture Spacing |
81mm |
|
Support Battery Specifications |
1. Battery compatible length 90-220mm; 2. Thickness 15-70mm 3. Height 80-230mm 4. Battery tabs 60-150mm |
|
Working Power Supply |
Three-phase 5 wire system AC380V;10%,50HZ |
|
Power Factor |
0.99 @220V AC, Fully loaded, power grid THDu≤2% |
|
Ac Current Distortion Rate |
<5% @220V AC, Fully loaded, power grid THDu≤2% |
|
Power Consumption |
≤23 KW |
|
Charging Efficiency Of Whole Machine |
Charge≥80%; discharge≥70% |
|
Work Environment |
Indoors, temperature is 10-30℃ under air convection. |
|
Heat-Dissipating Method |
Air cooling |
|
Voltage Testing Range |
DC 0~5V |
|
Battery Voltage Range |
Charge DC 0～4.5V；Discharge DC 4.5～2V |
|
Constant Voltage Range |
DC 2~4.5V |
|
Voltage Accuracy |
±(0.5% Reading+0.5% Full Degree) |
|
Voltage Resolution |
0.1mV |
|
Voltage Stability |
≤(±1mV) |
|
Current Range |
Charge DC 200mA～ 100A；Discharge DC 200mA～100A |
|
Accuracy Of Current |
±(0.5% Reading+0.5% Full Degre) |
|
Current Steady Reading |
≤(±1mA) |
|
Control Mode |
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system |
|
Communication Mode |
485 serial port communication (baud rate 57600)/TCP communication/chart |
|
Workflow Setting |
Up to 32 work steps and 256 cycles can be set, with the function of nested loops |
|
Charging Mode |
The function of nested loops |
|
Charge Cutoff Condition |
Constant, current, constant, voltage, -△V |
|
Discharge Mode |
Voltage, current, time, capacity |
|
Discharge Cutoff Condition |
Voltage, time, capacity |
|
Time Range |
0~ 30000 minutes/work step, time unit: min |
|
Time Accuracy |
≤±1%0 |
|
Sampling Tour Period |
1s-60s optional |
The above is the applicable battery size for Standardized Battery Capacity Testers. If you have other battery sizes,please contact us for personalized customization.
Product Advantage
Product Display
usage method:Please refer our user manual.
FAQ
Company Features
· Shenzhen PSN Energy Co.,Ltd will maintain a good lead by sales in the cell grading machine business.
· Our technical support engineers have deep industry and technical expertise on cell grading machine. Shenzhen PSN Energy Co.,Ltd has a sound management system and young and dynamic teams.
· PSN Energy finds strength in diversity and inclusion. Inquire now!
Application of the Product
The cell grading machine produced by PSN Energy can be used in many fields.
PSN Energy always pays attention to customers. According customers' actual needs, we could customize comprehensive and professional solutions for them.
Product Comparison
PSN Energy's cell grading machine has been substantially improved in a scientific way, as shown in the following aspects.
Enterprise Advantages
PSN Energy created an excellent team with a great education background and professional skills. This fully reflects that we attach great importance to talents introduction and cultivation.
Based on the loyal customer service consciousness, our company shows a good image to the customers and provides the best service for them.
With the management idea of 'accuracy for truth, innovation for development', our company organically integrates the industrial development and economic construction. We try our best to build a unique brand in the industry.
Our company has gone through years since the establishment in
At present, PSN Energy's products have been sold to many foreign countries.
