Company Advantages

· The materials are the soul of PSN Energy Car Battery Discharge Tester and well-selected from top grade suppliers. These materials perform well in the whole lifespan of the product.

· PSN Energy has passed the quality management system to ensure the quality of the product.

· It has distinguished competitiveness and has received much attention.

BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.

The device supports charging and activating the battery function, Battery pack monomer consistency evaluation test,Internal resistance test of the entire battery pack Battery pack load test, Battery pack high current protection test,Battery authenticity short circuit protection test.

Battery pack continuous charging test, Battery pack high current charging protection test,Equipment input voltage AC220v/5oHz(input line must be grounded),The equipment input housing is well grounded.



The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.

Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.

Model no.:PSN-BTS50-05-60

Purpose: Used for testing semi-finished and finished battery packs below 100V

Basic test items

01

Battery activation (charging, discharging, disconnecting load, etc.)

02

Open circuit voltage 1, open circuit voltage 2 (can detect charging port voltage)

03

AC internal resistance

04

DC internal resistance

05

Discharge test (battery PACK continuous load capacity, continuous discharge to check voltage drop ΔV)

06

Discharge overcurrent test (battery PACK discharge overcurrent protection function test, support secondary protection test)

07

Charge test (battery PACK continuous charging function, verify whether the charging is normal)

08

Charge overcurrent test (battery PACK charge overcurrent protection function test, support secondary protection test)

09

Resistance R1, R2 test (ID, NTC and other resistance tests)

10

Short circuit test (test the battery positive and negative short-circuit battery cut-off protection time (uS level), support shutdown

11

voltage detection, recovery voltage detection)

12

Equipment protection function

13

Software protection function: power-off data protection

14

Hardware protection: power-off protection, short circuit protection, battery reverse connection, wrong connection protection

matters needing attention:If you need customermade function please contact with our sales.

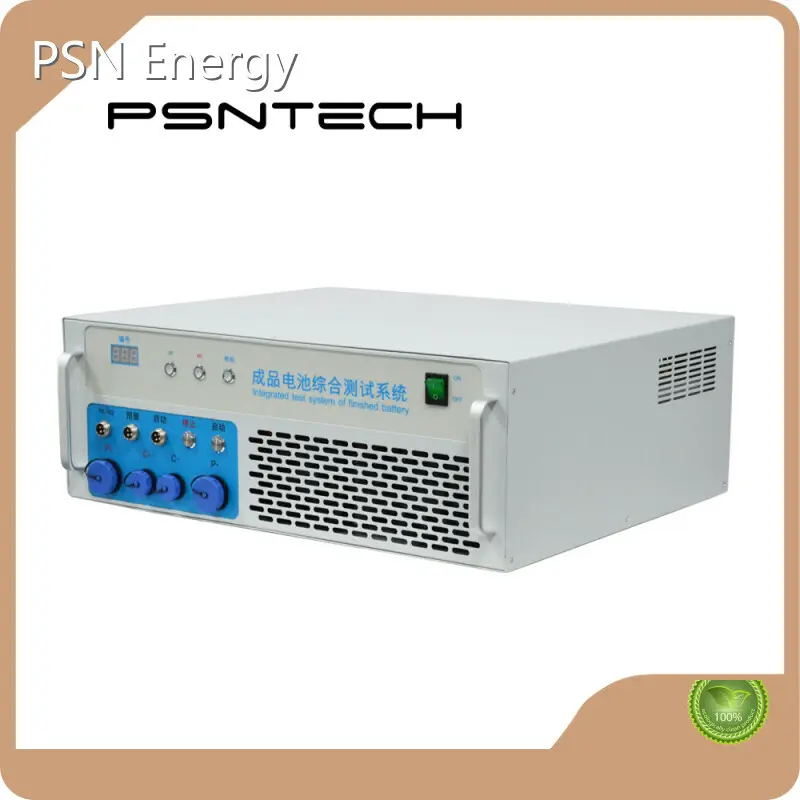

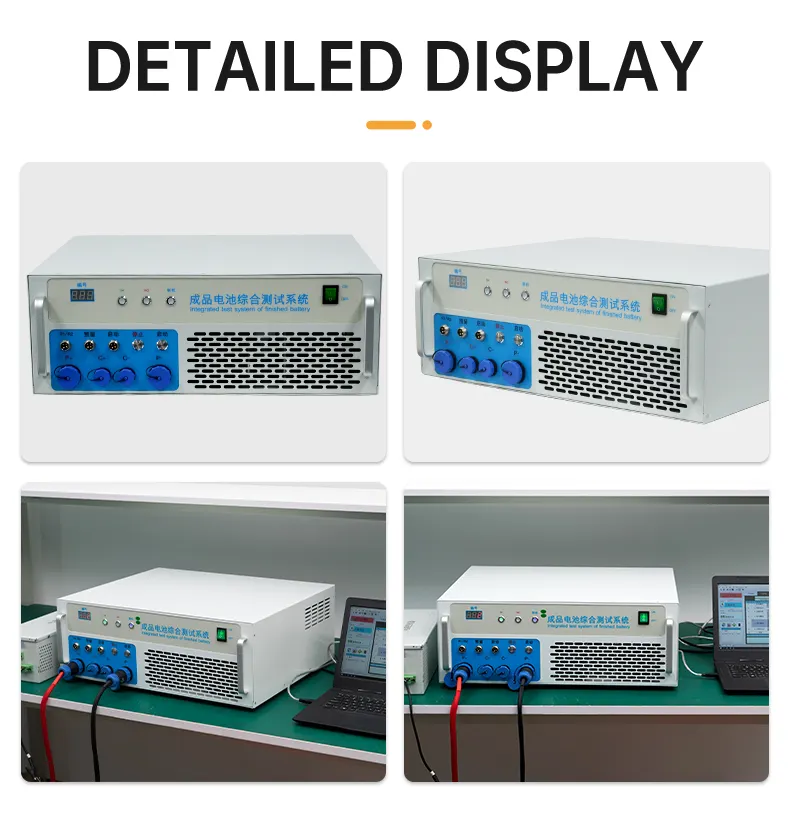

Product Display

20240619_164525_001

H6900da1ad5554b00b8cb5488c8d81c8ee

20240619_164525_009

20240619_164525_014 (2)

usage method:Please refer our user manual or follow our youtube channel.

Company Features

· Shenzhen PSN Energy Co.,Ltd is a core enterprise of China in the industry of Car Battery Discharge Tester.

· We have a dedicated project management team that plays an important role in our business. They have a wealth of industrial management experience to provide feasible suggestions throughout the project management process. We have set up a team of testing engineers to conduct quality inspections. Thanks to their rich testing experience and meticulous attitude towards quality, they can verify whether each product meets the highest quality standard.

· Our companies align with a social cause. We concern about the development of our society. We devote ourselves to supplying communities with capital or resources if there are any natural disasters that happen.

Product Details

With a focus on product's quality, our company pursues perfection in every detail.

Product Comparison

PSN Energy's Car Battery Discharge Tester gains a high market share for the following advantages.
