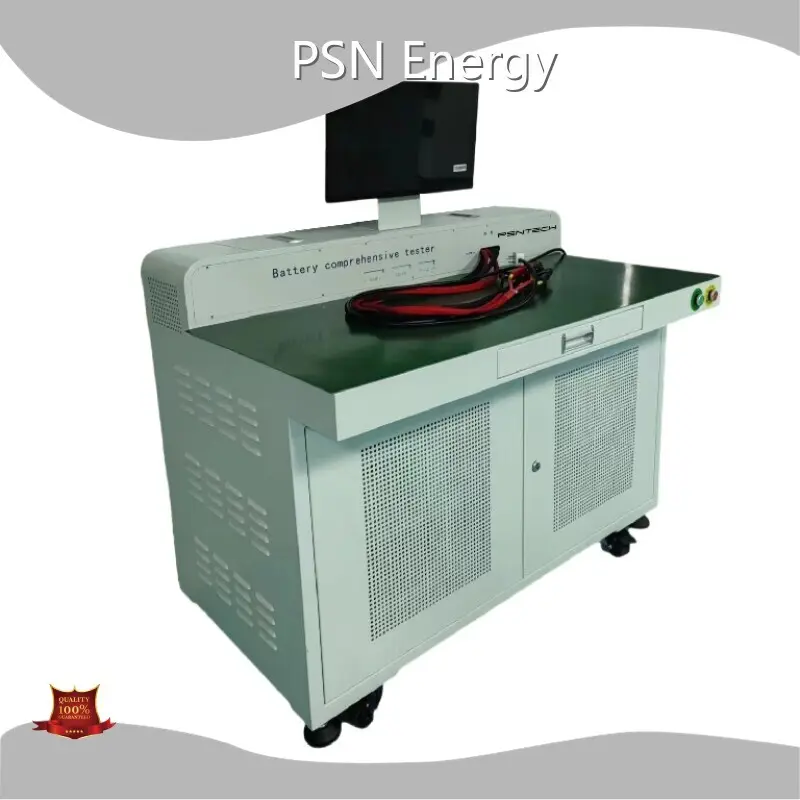

Battery Pack Testing Machine by PSN Energy-1
Product details of the battery pack testing machine
Product Description
All raw materials of PSN Energy battery pack testing machine undergo rigorous quality checks. The product has the quality that perfectly matches the customer's high requirements regarding durability and stability. Shenzhen PSN Energy Co.,Ltd has always been guided by the needs of its customers.
|
Model |
PSN-BTS100-40-400 |
||
|
Test Item |
Details |
Test Range |
Resolution |
|
Open circuit voltage |
Open circuit voltage |
10-100V |
2mV |
|
AC internal impedance |
AC internal resistance test |
0-1000mV |
1mV |
|
Discharge test |
Starting voltage |
0-100V |
2mV |
|
End voltage |
0-100V |
2mV |
|
|
discharge current |
0.1-200A |
1mA |
|
|
Discharge time |
0-60S |
1mS |
|
|
Discharge over current test |
Over discharge current |
10-400A |
1mA |
|
Over current delay |
0-30S |
1mS |
|
|
Charging test |
Starting voltage |
10-100V |
2mV |
|
End voltage |
10-100V |
2mV |
|
|
Charge current |
0.1A-40A |
1mA |
|
|
Charge time |
0-60S |
1mS |
|
|
Charging protection test |
Charging overcurrent |
4-40A |
1mA |
|
Charging delay |
0-30S |
0.1mS |
|
|
resistanceR1/R2 |
NTC |
0-1000KΩ |
0.1KΩ |
|
Sustainable output power |
4KW |
||
|
Sustainable load power |
20KW |
||
|
Online mode |
Serial communication (RS232, which can be used by multiple computers online) |
||
|
Test data |
The generated data table is automatically saved and can be exported to excel |
||
|
Barcode management |
Support bar code startup and binding test data |
||
|
Warranty Period |
1Year |
||
|
Free software upgrade service |
Upgrade for free for life until the hardware is incompatible |
||
|
Heat dissipation |
Ventilation system and forced air cooling |
||
|
Dimension |
1290*800*1080mm |
||
|
Weight |
100KG |
||
|
Channel Qty |
1 |
||
|
Spare Parts |
Computer, test pen line, user manual, computer software, etc |
||
BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.
The device supports charging and activating the battery function, Battery pack monomer consistency evaluation test,Internal resistance test of the entire battery pack. Battery pack load test, Battery pack high current protection test,Battery authenticity short circuit protection testBattery pack continuous charging test, Battery pack high current charging.
protection test,Equipment input voltage AC220v/5oHz(input line must be grounded),The equipment input housing is well grounded.
The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.
Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.
Model no.:PSN-BTS100-40-400
Purpose: Used for testing semi-finished and finished battery packs below 100V
Basic test items
matters needing attention:If you need customermade function please contact with our sales.
Product Display
usage method:Please refer our user manual or follow our youtube channel.
