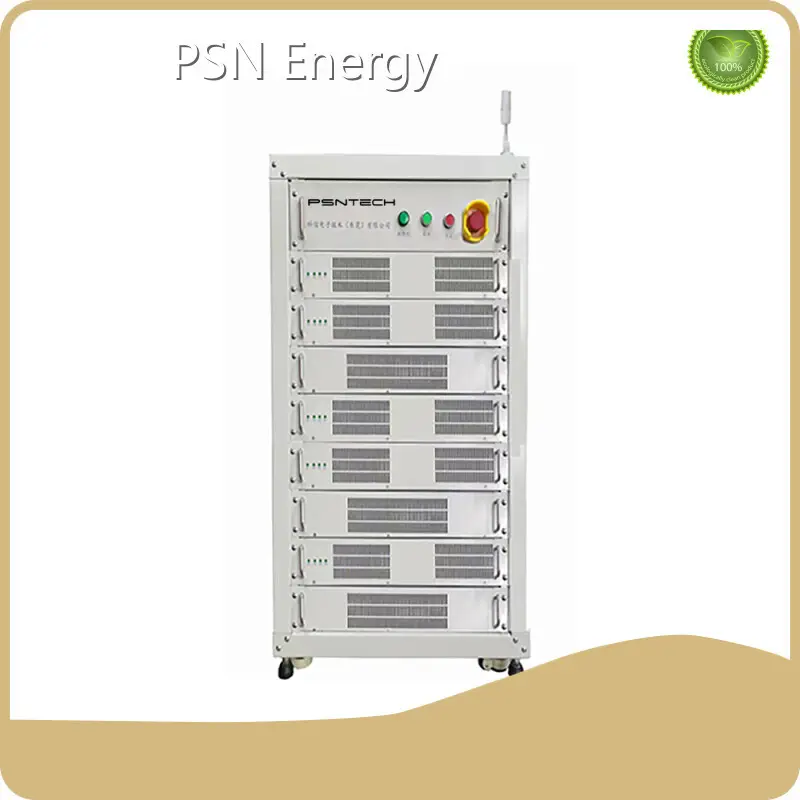

Battery Discharge Tester PSN-BA6030KX16 Wholesale - PSN Energy
Product details of the Battery Discharge Tester
Product Introduction
Battery Discharge Tester from Shenzhen PSN Energy Co.,Ltd creates a novel product style through innovations in the terms of material and out-look design. We plan the quality management system and meet the quality object. Shenzhen PSN Energy Co.,Ltd constantly introducing high-performance Battery Discharge Tester products to meet the needs of users at home and abroad.
Structure Of Equipment
- Applicable battery types: battery module charge and discharge test, energy storage battery charge and discharge test, power battery charge and discharge test, etc.
- Number of device channels: optional (1 channel ~ 24 channels)
- Device model: 60V30A / 60V60A / 60V120A /60V240A / 60V480A / 60V1000A........
- Charging voltage: DC 0V~60V
- Discharge voltage: DC 60V~10V
- Current range: 150mA~30A-60A-120A~240A~480A~1000A........
- Feedback efficiency: 92% (rated power)
- Charging mode support: constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging.
- Discharge mode support: constant current discharge, constant power discharge.
Product Details
- Number of device channels: The whole machine has 8 channels - 24channel
- Charging voltage: DC 0~60V, the maximum voltage is 60V.
- Discharging voltage: DC 60V~12V, the minimum voltage is 10V,
- Current range: 150mA~30A~60A~120A~240A~480A~1000A........
- Voltage: 380V±10%
- Communication method: TCP/IP (network port)
- Current response time: 10ms
- Main channel data acquisition cycle: 100ms
- Current accuracy: ±(0.05% RD + 0.05% FS)
- Voltage accuracy: ± (0.05% RD + 0.05% FS)
- Voltage resolution: 1mv The minimum unit used by the device when detecting or setting the voltage.
- Current resolution: 1mA The minimum unit used by the device when detecting or setting the voltage.
- Power accuracy: ± (0.05% RD + 0.05% FS)
- Power resolution: 0.1W
Software functions
- Communication method: TCP/IP (network port)
- Control method: computer control equipment operation, whole cabinet control.
- Charging mode: constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging.
- Discharge mode: constant current discharge, constant power discharge, constant voltage discharge, constant resistance discharge.
- Charging cut-off conditions: voltage, current, time, capacity, temperature.
- Discharge cut-off conditions: voltage, current, time, capacity, temperature.
- Single cycle step number: 250 steps, with 10,000 nested loop function, supporting 10 layers of nested loops.
- Circuit structure: modular structure design, easy to replace and repair.
Equipment advantages
▲Modular design, single-point control technology, convenient expansion, high production and maintenance efficiency.
▲Battery capacity test.
▲Battery cycle life test.
▲Battery charge/discharge characteristic test.
▲Battery charge retention test.
▲Battery charge/discharge efficiency test.
▲Battery temperature characteristic test.
▲Battery depth/constant voltage discharge test.
▲DC internal resistance test.
▲Battery overcharge/overdischarge rate tolerance test.
▲Support CAN/RS485 and other communications to achieve data docking with BMS.
▲Support docking with MES system.
▲Auxiliary channel acquisition and recording.
▲Static test, dynamic test, static.
▲With anti-reverse connection, data loss protection function.
▲Support multi-channel parallel connection.
▲Feedback efficiency 92%.
▲Charge and discharge power factor 0.99 (rated power)
