Focus on customer made high quality power lithium battery and test equipment to very application.

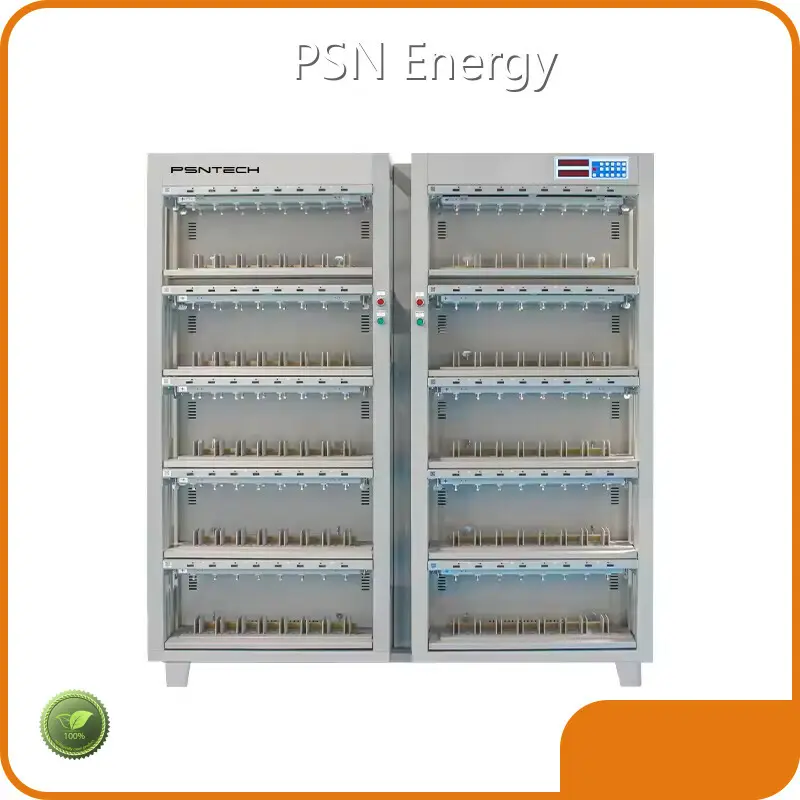

Battery Discharge Capacity Tester White - - PSN Energy
Company Advantages
· PSN Energy Battery Discharge Capacity Tester is developed using premium quality materials in compliance with international quality standards.
· Our strict inspection ensures the high quality of our products.
· The product is extensively demanded in the market due to its unmatched advantages.
| Model | PSN37-0516040 |
| Number Of Device Channels | 160 channels |
| Overall Dimension | Width 1880mm× Depth 1008mm× Height 2033mm |
| Color | White |
| Jig Form | Electric clamp opening, enhanced flat head clamp |
| Fixture Spacing | 81mm |
| Support Battery Specifications | 1. Battery compatible length 90-210mm，2. Thickness 16-70mm，3. Height 80-230mm，4. Battery tabs 40-150mm |
| Working Power Supply | Three-phase 5 wire system AC380V±10%,50HZ |
| Power Factor | 0.99 @220V AC, Fully loaded, power grid THDu≤2% |
| Ac Current Distortion Rate | <5% @220V AC, Fully loaded, power grid THDu≤2% |
| Power Consumption | ≤28 KW |
| Charging Efficiency Of Whole Machine | Charge≥80%; discharge≥70% |
| Work Environment | Indoors, temperature is 10-30℃ under air convection. |
| Heat-Dissipating Method | Air cooling |
|
Voltage Testing Range |
DC 0~5V |
|
Battery Voltage Range |
Charge DC 0～4.5V；Discharge DC 4.5～2V |
|
Constant Voltage Range |
DC 2~4.5V |
|
Voltage Accuracy |
±(0.5% Reading+0.5% Full Degree) |
|
Voltage Resolution |
0.1mV |
|
Voltage Stability |
≤(±1mV) |
|
Current Range |
Charge DC100mA～ 40A；Discharge DC 100mA～40A |
|
Accuracy Of Current |
±(0.5% Reading+0.5% Full Degre) |
|
Current Steady Reading |
≤(±1mA) |
|
Control Mode |
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system |
|
Communication Mode |
485 serial port communication (baud rate 57600)/TCP communication/chart |
|
Workflow Setting |
Up to 32 work steps and 256 cycles can be set, with the function of nested loops |
|
Charging Mode |
The function of nested loops |
|
Charge Cutoff Condition |
Constant, current, constant, voltage, -△V |
|
Discharge Mode |
Voltage, current, time, capacity |
|
Discharge Cutoff Condition |
Voltage, time, capacity |
|
Time Range |
0~ 30000 minutes/work step, time unit: min |
|
Time Accuracy |
≤±1%0 |
|
Sampling Tour Period |
1s-60s optional |
Product Advantage
Product Display
FAQ
Company Features
· Shenzhen PSN Energy Co.,Ltd is a Chinese manufacturer of Battery Discharge Capacity Tester. We have gained a reputation in the market for our experience and expertise.
· Having been strictly tested by professional QC department, Battery Discharge Capacity Tester has caught many people's eyes. In Shenzhen PSN Energy Co.,Ltd, our Battery Discharge Capacity Tester are of great quality. We have professional QC department to test strictly Battery Discharge Capacity Tester.
· We carry out sustainable activities in our business operation. We believe the environmental impact of our actions will not only appeal to socially conscious consumers and employees but can also make a real difference in the world.
Product Comparison
Compared with similar products, the Battery Discharge Capacity Tester produced by PSN Energy has the following advantages.
Enterprise Advantages
A number of highly skilled and experienced engineers lay a solid foundation for the development of PSN Energy.
PSN Energy pays great attention to customers and services in the business. We are dedicated to providing professional and excellent services.
PSN Energy aims to become China's leading enterprise in the future with sustainable and efficient operation and rapid growth.
Through the development for years, PSN Energy has become one of the enterprises with large production and sales volume and high brand awareness in the industry.
With high-quality products and years of management experience, we have established a sales network throughout the country. Our products are mainly sold to major cities in China and Southeast Asia, and are highly valued by consumers.
