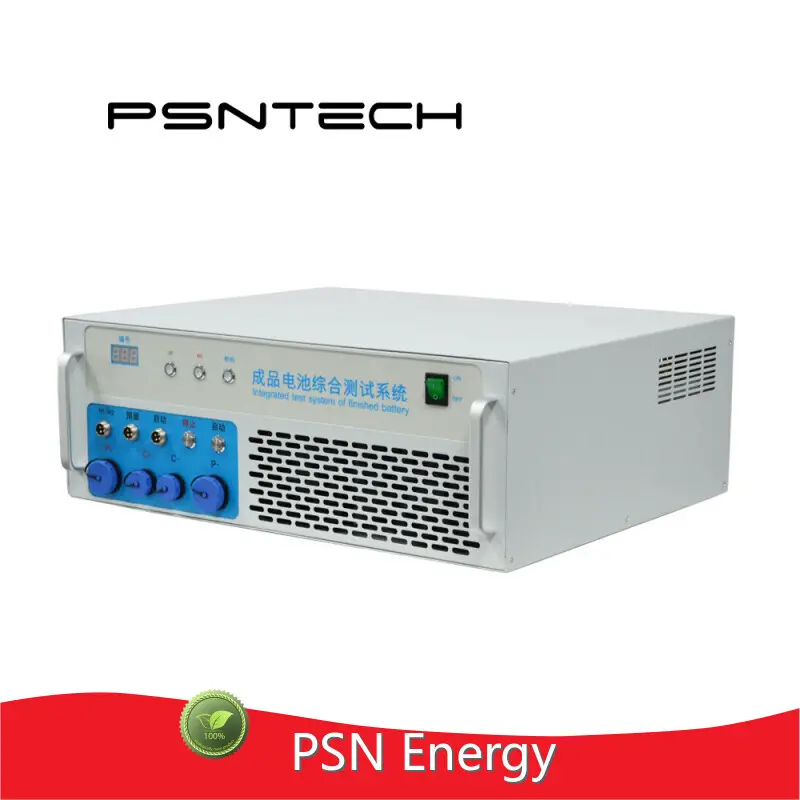

Battery Discharge Capacity Tester 50Hz±10% by PSN Energy
Product details of the Battery Discharge Capacity Tester
Quick Detail
The material for Battery Discharge Capacity Tester is of high quality. Manufactured in our own technologically-advanced facility, the product is quality-assured. Our Battery Discharge Capacity Tester collection is distributed in many countries.
Product Information
Our Battery Discharge Capacity Tester has a certain share in the market because of the following characteristics.
|
Model |
PSN-BTS50-05-60 |
||
|
Test Item |
Details |
Test Range |
Resolution |
|
Open circuit voltage |
Open circuit voltage |
0-50V |
2mV |
|
AC internal impedance |
AC internal resistance test |
0-1000mV |
1mV |
|
Discharge test |
Starting voltage |
0-50V |
2mV |
|
End voltage |
0-50V |
2mV |
|
|
discharge current |
0.1-60A |
1mA |
|
|
Discharge time |
0-60S |
1mS |
|
|
Discharge over current test |
Over discharge current |
4-60A |
1mA |
|
Over current delay |
0-30S |
1mS |
|
|
Charging test |
Starting voltage |
0-50V |
2mV |
|
End voltage |
0-50V |
2mV |
|
|
Charge current |
0.1A-5A |
1mA |
|
|
Charge time |
0-60S |
1mS |
|
|
Charging protection test |
Charging overcurrent |
2-5A |
1mA |
|
Charging delay |
0-30S |
0.1mS |
|
|
resistanceR1/R2 |
NTC |
0-1000KΩ |
0.1KΩ |
|
Sustainable output power |
0.25KW |
||
|
Sustainable load power |
3KW |
||
|
Online mode |
Serial communication (RS232, which can be used by multiple computers online) |
||
|
Test data |
The generated data table is automatically saved and can be exported to excel |
||
|
Barcode management |
Support bar code startup and binding test data |
||
|
Warranty Period |
1Year |
||
|
Free software upgrade service |
Upgrade for free for life until the hardware is incompatible |
||
|
Heat dissipation |
Ventilation system and forced air cooling |
||
|
Dimension |
580*500*220mm |
||
|
Weight |
26KG |
||
|
Channel Qty |
1 |
||
|
Spare Parts |
Computer, test pen line, user manual, computer software, etc |
||
BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.
The device supports charging and activating the battery function, Battery pack
Battery pack continuous charging test, Battery pack high current charging
The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.
Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.
Model no.:PSN-BTS50-05-60
Purpose: Used for testing semi-finished and finished battery packs below 100V
Basic test items
matters needing attention:If you need customermade function please contact with our sales.
Product Display
usage method:Please refer our user manual or follow our youtube channel.
