Focus on customer made high quality power lithium battery and test equipment to very application.

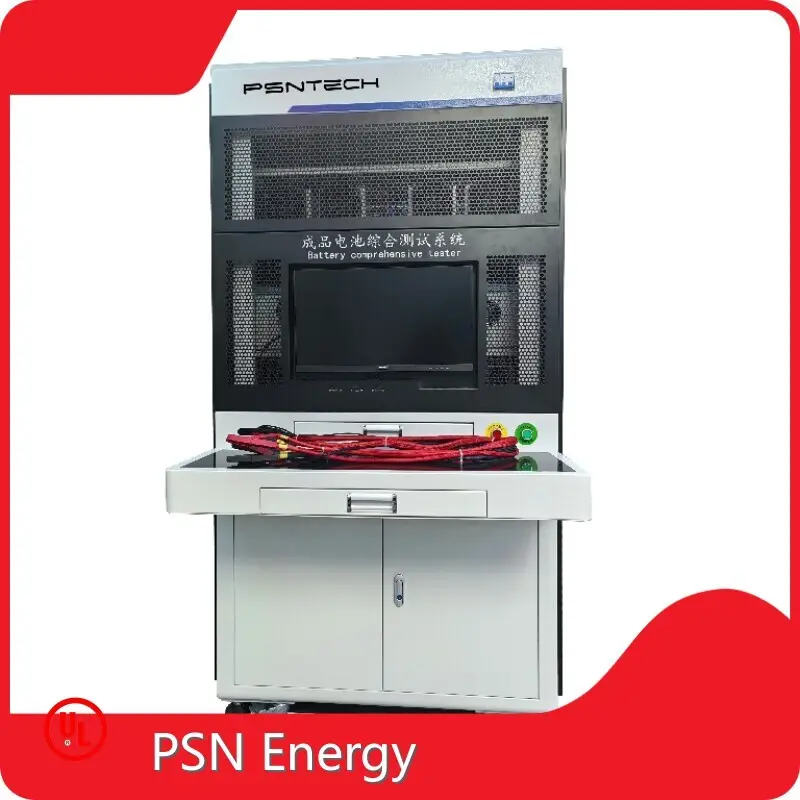

Battery Discharge Capacity Tester 1 Wholesale - PSN Energy 1

Battery Discharge Capacity Tester 1 Wholesale - PSN Energy 2

Battery Discharge Capacity Tester 1 Wholesale - PSN Energy

AC power:

380V±10%, 50Hz±10%

Size:

1150*950*1900mm

Minimum order quantity:

Delivery time:

25 WORKING DAYS

transaction mode:

EXW

Inquiry

more products

Lithium Power Battery

Lithium-ion Battery Testing Equipment

Lithium Battery Swapping Station

Lithium Battery Swapping Cabinet

Energy storage lithium battery

Send your inquiry

Product details of the Battery Discharge Capacity Tester

Product Information

Shenzhen PSN Energy Co.,Ltd provides various custom-made Battery Discharge Capacity Tester for your selection. This product is defectless and stringently tested on different quality parameters by our team of experts. The product, highly recommended by users, has great market potential.

Model	PSN-BTS100-40-400
Test Item	Details	Test Range	Resolution
Open circuit voltage	Open circuit voltage	10-100V	2mV
AC internal impedance	AC internal resistance test	0-1000mV	1mV
Discharge test	Starting voltage	0-100V	2mV
	End voltage	0-100V	2mV
	discharge current	0.1-300A	1mA
	Discharge time	0-60S	1mS
Discharge over current test	Over discharge current	10-600A	1mA
	Over current delay	0-30S	1mS
Charging test	Starting voltage	10-100V	2mV
	End voltage	10-100V	2mV
	Charge current	0.1A-100A	1mA
	Charge time	0-60S	1mS
Charging protection test	Charging overcurrent	4-100A	1mA
	Charging delay	0-30S	0.1mS
resistanceR1/R2	NTC	0-1000KΩ	0.1KΩ
Sustainable output power		10KW
Sustainable load power		30KW
Online mode		Serial communication (RS232, which can be used by multiple computers online)
Test data		The generated data table is automatically saved and can be exported to excel
Barcode management		Support bar code startup and binding test data
Warranty Period		1Year
Free software upgrade service		Upgrade for free for life until the hardware is incompatible
Heat dissipation		Ventilation system and forced air cooling
Dimension	*11509501900mm*
Weight	200KG
Channel Qty	1
Spare Parts	Computer, test pen line, user manual, computer software, etc

BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.

The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.

Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.

Model no.:PSN-BTS100-100-600

Purpose: Used for testing semi-finished and finished battery packs below 100V

Basic test items

Battery activation (charging, discharging, disconnecting load, etc.)

Open circuit voltage 1, open circuit voltage 2 (can detect charging port voltage)

AC internal resistance

DC internal resistance

Discharge test (battery PACK continuous load capacity, continuous discharge to check voltage drop ΔV)

Discharge overcurrent test (battery PACK discharge overcurrent protection function test, support secondary protection test)

Charge test (battery PACK continuous charging function, verify whether the charging is normal)

Charge overcurrent test (battery PACK charge overcurrent protection function test, support secondary protection test)

Resistance R1, R2 test (ID, NTC and other resistance tests)

Short circuit test (test the battery positive and negative short-circuit battery cut-off protection time (uS level), support shutdown

voltage detection, recovery voltage detection)

Equipment protection function

Software protection function: power-off data protection

Hardware protection: power-off protection, short circuit protection, battery reverse connection, wrong connection protection

If you need customermade function please contact with our sales

Product Display

微信图片_20240619115230~1

微信图片_20240619115159~1

H17964dc3b7c846769c484ac523ff4bd4W~1

FAQ

What products do you offer?

Our main products are Lithium-ion Battery as well as lithium battery Production and test . This includes laboratory-scale manufacturing equipment for raw battery materials such as prismatic cells, cylindrical cells, pouch cells, battery pack assembly lines, and supercapacitor production equipment.

How can I get a sample to check your quality?

If you need sample to test, please pay for the freight and sample cost. And the sample cost will be returned to you after you place a bulk order more than our MOQ.

Can I have the products with my own logo or other customizable service?

Yes. We can offer both OEM & ODM service with prototype design and small MOQ. For other customized services, please kindly feel free to contact us at any time and provide solutions.

Can you give me a discount?

Yes, based on wholesale service, we have better discounts for bigger quantities. We will quote you the best price based on your order quantity.

How to do if I can’t reach your minimum order quantity?

Do not worry about that. If you can’t reach MOQ for each item, we suggest you refer to our goods in stock and group sourcing items. We also can send you the latest list of the prompt goods for your reference.

How to make order?

Send us your purchase order by email , or ask us to send you a proforma invoice for your order.

Company Feature

• PSN Energy can fully explore the ability of every employee and provide considerate service for consumers with good professionalism.
• PSN Energy, built in has established a good reputation in the society with years' experience in industry.
• PSN Energy's Lithium battery pack,lithium battery tester,lithium battery swapping station enjoy a good reputation at home and abroad. They are not only widely sold in the domestic market, but also exported to Europe, America, Southeast Asia, Asia, and other countries and regions.
• PSN Energy has a professional team dedicated to product research and development. This ensures the continuous improvement of product quality.
Hello, thank you for your interest in this site! If you have any needs, please call PSN Energy. We are very glad to be at your service!

we welcome custom designs and ideas and is able to cater to the specific requirements. for more information, please visit the website or contact us directly with questions or inquiries.
