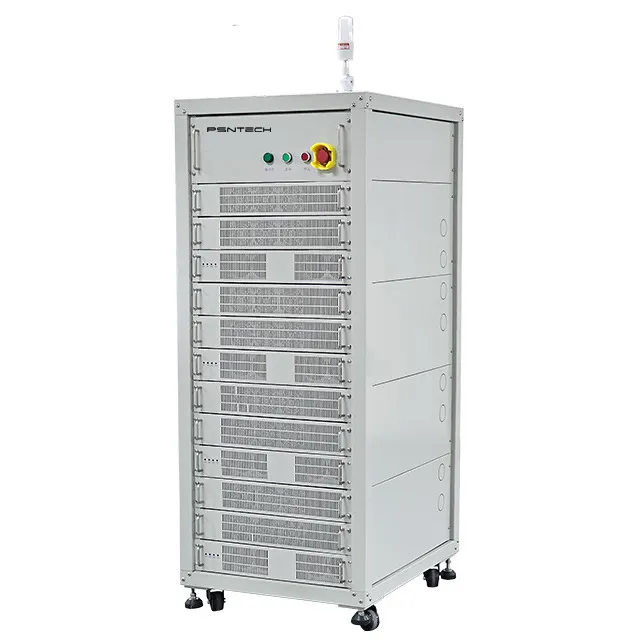

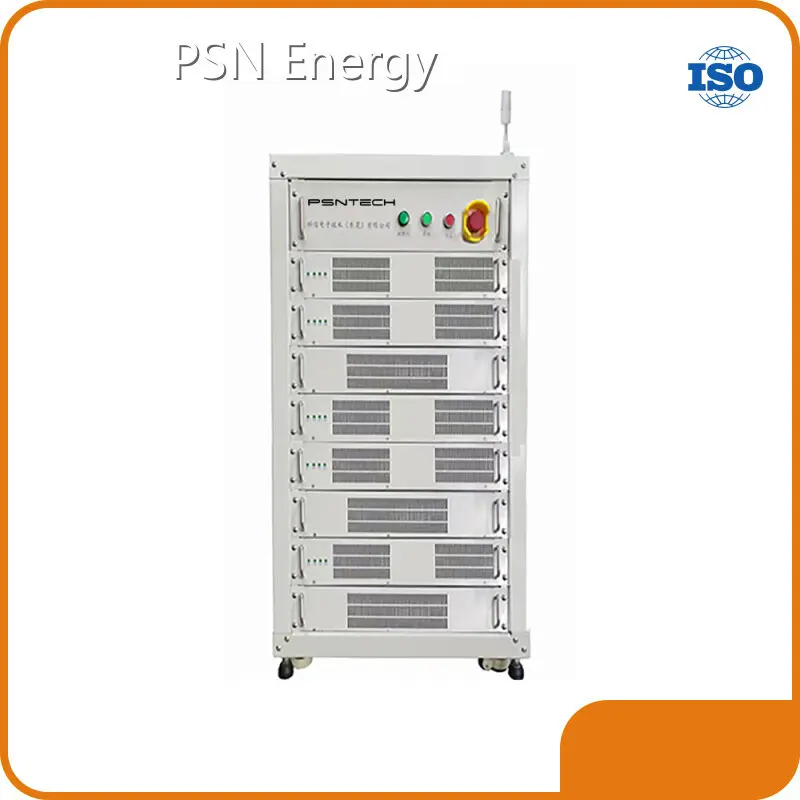

Battery Aging Machine Factory Wooden Case by PSN Energy
Product details of the battery aging machine factory
Product Overview
The raw materials of PSN Energy battery aging machine factory are purchased from reliable suppliers and delivered on time. The product is stable in quality and superior in performance. Shenzhen PSN Energy Co.,Ltd realized comprehensive utilization of resources, creating wealth for the customers.
Product Introduction
We value the quality of our products. And we strive for perfection in every detail of products. In this way, we guarantee the fine quality of our products.
Structure Of Equipment
- Applicable battery types: battery module charge and discharge test, energy storage battery charge and discharge test, power battery charge and discharge test, etc.
- Number of device channels: optional (1 channel ~ 24 channels)
- Device model: 60V30A / 60V60A / 60V120A /60V240A / 60V480A / 60V1000A........
- Charging voltage: DC 0V~60V
- Discharge voltage: DC 60V~10V
- Current range: 150mA~30A-60A-120A~240A~480A~1000A........
- Feedback efficiency: 92% (rated power)
- Charging mode support: constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging.
- Discharge mode support: constant current discharge, constant power discharge.
Product Details
- Number of device channels: The whole machine has 8 channels - 24channel
- Charging voltage: DC 0~60V, the maximum voltage is 60V.
- Discharging voltage: DC 60V~12V, the minimum voltage is 10V,
- Current range: 150mA~30A~60A~120A~240A~480A~1000A........
- Voltage: 380V±10%
- Communication method: TCP/IP (network port)
- Current response time: 10ms
- Main channel data acquisition cycle: 100ms
- Current accuracy: ±(0.05% RD + 0.05% FS)
- Voltage accuracy: ± (0.05% RD + 0.05% FS)
- Voltage resolution: 1mv The minimum unit used by the device when detecting or setting the voltage.
- Current resolution: 1mA The minimum unit used by the device when detecting or setting the voltage.
- Power accuracy: ± (0.05% RD + 0.05% FS)
- Power resolution: 0.1W
Software functions
- Communication method: TCP/IP (network port)
- Control method: computer control equipment operation, whole cabinet control.
- Charging mode: constant current charging, constant voltage charging, constant current and constant voltage charging, constant power charging.
- Discharge mode: constant current discharge, constant power discharge, constant voltage discharge, constant resistance discharge.
- Charging cut-off conditions: voltage, current, time, capacity, temperature.
- Discharge cut-off conditions: voltage, current, time, capacity, temperature.
- Single cycle step number: 250 steps, with 10,000 nested loop function, supporting 10 layers of nested loops.
- Circuit structure: modular structure design, easy to replace and repair.
Equipment advantages
▲Modular design, single-point control technology, convenient expansion, high production and maintenance efficiency.
▲Battery capacity test.
▲Battery cycle life test.
▲Battery charge/discharge characteristic test.
▲Battery charge retention test.
▲Battery charge/discharge efficiency test.
▲Battery temperature characteristic test.
▲Battery depth/constant voltage discharge test.
▲DC internal resistance test.
▲Battery overcharge/overdischarge rate tolerance test.
▲Support CAN/RS485 and other communications to achieve data docking with BMS.
▲Support docking with MES system.
▲Auxiliary channel acquisition and recording.
▲Static test, dynamic test, static.
▲With anti-reverse connection, data loss protection function.
▲Support multi-channel parallel connection.
▲Feedback efficiency 92%.
▲Charge and discharge power factor 0.99 (rated power)
