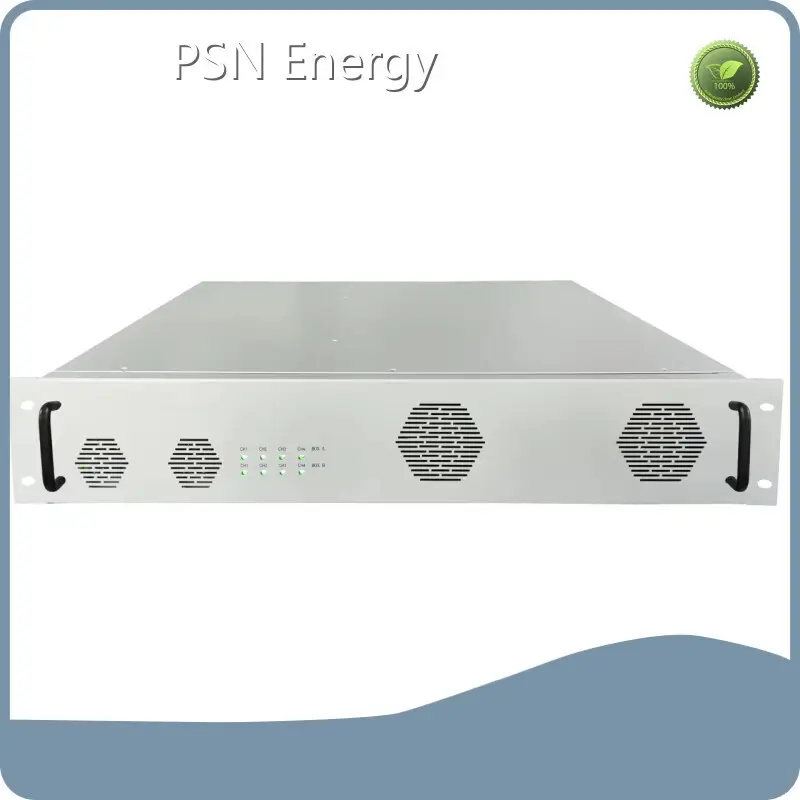

18650 Discharge Tester PSNTECH by PSN Energy
Brand Name:
PSNTECH
Minimum order quantity:
1
Color:
white
Delivery time:
15WORKING DAYS
Model:
5V120A
Product details of the 18650 Discharge Tester
Product Description
Our PSN Energy 18650 Discharge Tester is manufactured using the finest materials and the advanced equipment. The product has an outstanding performance to face different environment. Shenzhen PSN Energy Co.,Ltd's mission is to provide superior 18650 Discharge Tester with advanced technologies and gorgeous design.
Structure Of Equipment
| Number Of Device Channels | 1-96 channels |
| Charge Voltage | DC 0~5V , maximum voltage is 5V |
| Discharge Voltage | EDC5V~1V,minimum voltage is 1V.(Discharge to 0V can be customized) |
| Charge current | DC 0.15A~120A,maximum current is 120A |
| Discharge current | DC 0.15A~120A,maximum current is 120A |
| Input Power | AC220V ± 10% /50HZ (cabinet power supply mode: three-phase five-wire) |
| Temperature resolution | 0.1℃ |
| Current accuracy | ± (0.025%RD +0.025% FS) |
| Voltage accuracy | ± (0.025%RD +0.025% FS) |
| Voltage Resolution | 1mV The smallest unit used by the device when detecting or setting the voltage |
| Current Resolution | 1mA The smallest unit used by the device when detecting or setting the current |
| Main temperature | 1 channel per channel can be selected according to the specific equipment |
| Input impedance | ≥10mΩ |
| Power accuracy | ±(0.1% RD+0.1%FS) |
Product Details
- Number of device channels: 1 channel ~ 96 channels / unit
- Charge voltage: DC 0 ~ 5V, maximum voltage is 5V.
- Discharge voltage: DC 5V ~ 1V, minimum voltage is 1V. (Discharge to 0V can be customized)
- Charge current: DC 0.15A ~ 120A, maximum current is 120A
- Discharge current: DC 0.15A ~ 120A, maximum current is 120A
- Input power: AC220V ± 10% / 50HZ (cabinet power supply mode: three-phase five-wire)
- Temperature resolution: 0.1℃
- Current accuracy: ± (0.025% RD + 0.025% FS)
- Voltage accuracy: ± (0.025% RD + 0.025% FS)
- Voltage resolution: 1mv The smallest unit used by the device when detecting or setting the voltage.
- Current resolution: 1mA The smallest unit used by the device when detecting or setting the voltage.
- Main temperature: 1 channel per channel can be selected according to the specific equipment
- Input impedance: ≥10MΩ
- Power accuracy: ± (0.1% RD + 0.1% FS)
Software functions
- Communication method: TCP/IP (network port)
- Control method: computer control equipment operation, whole cabinet control.
- Charge mode: constant current charge, constant voltage charge, constant current and constant voltage charge, constant power charge.
- Discharge mode: constant current discharge, constant power discharge.
- Charge cut-off conditions: voltage, current, time, capacity, temperature.
- Discharge cut-off conditions: voltage, current, time, capacity, temperature.
- Single cycle steps: ≤999 steps, with nested loop function.
- Circuit structure: modular structure design, easy to replace and repair
Equipment advantages
- Single point independence, each battery test channel can be independently controlled.
- Battery reverse connection hardware protection and software protection function.
- Equipment accuracy within 0.05%, ensuring high stability of measurement and operation;
- TCP/IP network communication mode, the fastest data recording time is 0.1 second/
- Voltage and current loops are designed independently to ensure smooth and safe transition of charging and discharging.
- With power-off hardware and software protection, test data hard disk storage, no data loss;
- With abnormal termination test continuation function;
- Charging energy saving efficiency can reach 85%, and discharge feedback to the power grid, the efficiency can reach 80%;
- Environmental protection and energy saving, saving electricity bills, 1~2 years to recover equipment costs;
- Multi-channel equipment can be split, used in parallel, and can be customized.
- Temperature detection, can bring one temperature measurement, can be customized.
- The fixture is flexible and adjustable, with strong compatibility, modular design concept, and easy maintenance.
