Product details of the 18650 Battery Capacity Tester
Product Overview

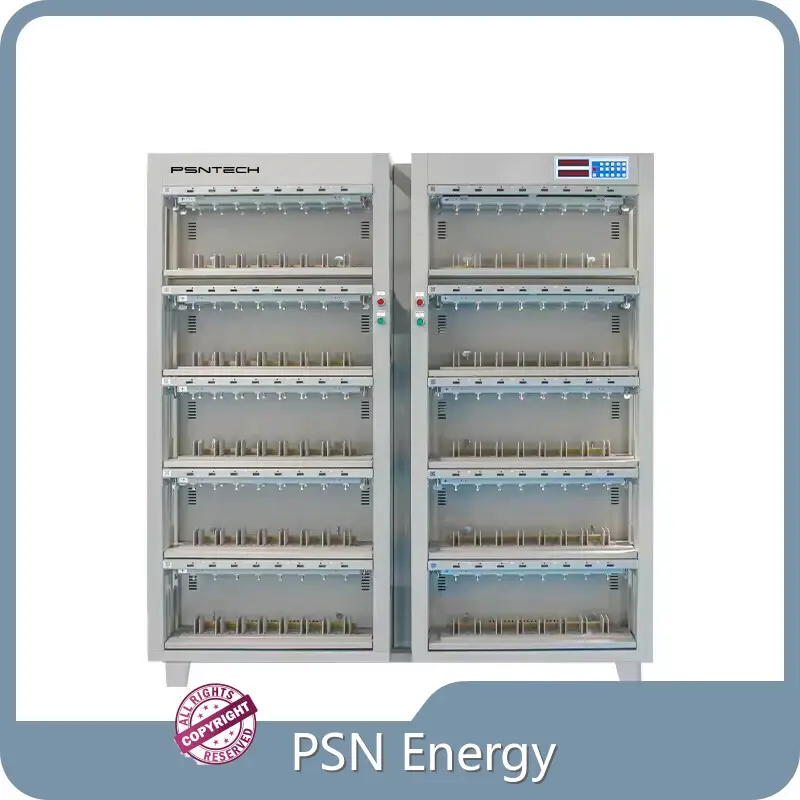

The design style of PSN Energy 18650 Battery Capacity Tester attracts eyes. Adhering to the principle of 'quality first', this product is manufactured according to the industry quality requirements. The obvious economic benefits of the product are well-received by customers.
Product Information
PSN Energy's 18650 Battery Capacity Tester has been further improved based on advanced technology, as reflected in the following aspects.
| Model |
PSN37-0516040 |
| Number Of Device Channels |
160 channels |
| Overall Dimension |
Width 1880mm× Depth 1008mm× Height 2033mm |
| Color |
White |
| Jig Form |
Electric clamp opening, enhanced flat head clamp |
| Fixture Spacing |
81mm |
| Support Battery Specifications |
1. Battery compatible length 90-210mm，2. Thickness 16-70mm，3. Height 80-230mm，4. Battery tabs 40-150mm |
| Working Power Supply |
Three-phase 5 wire system AC380V±10%,50HZ |
| Power Factor |
0.99 @220V AC, Fully loaded, power grid THDu≤2% |
| Ac Current Distortion Rate |
<5% @220V AC, Fully loaded, power grid THDu≤2% |
| Power Consumption |
≤28 KW |
| Charging Efficiency Of Whole Machine |
Charge≥80%; discharge≥70% |
| Work Environment |
Indoors, temperature is 10-30℃ under air convection. |
| Heat-Dissipating Method |
Air cooling |
|
Voltage Testing Range
|
DC 0~5V
|
|
Battery Voltage Range
|
Charge DC 0～4.5V；Discharge DC 4.5～2V
|
|
Constant Voltage Range
|
DC 2~4.5V
|
|
Voltage Accuracy
|
±(0.5% Reading+0.5% Full Degree)
|
|
Voltage Resolution
|
0.1mV
|
|
Voltage Stability
|
≤(±1mV)
|
|
Current Range
|
Charge DC100mA～ 40A；Discharge DC 100mA～40A
|
|
Accuracy Of Current
|
±(0.5% Reading+0.5% Full Degre)
|
|
Current Steady Reading
|
≤(±1mA)
|
|
Control Mode
|
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system
|
|
Communication Mode
|
485 serial port communication (baud rate 57600)/TCP communication/chart
|
|
Workflow Setting
|
Up to 32 work steps and 256 cycles can be set, with the function of nested loops
|
|
Charging Mode
|
The function of nested loops
|
|
Charge Cutoff Condition
|
Constant, current, constant, voltage, -△V
|
|
Discharge Mode
|
Voltage, current, time, capacity
|
|
Discharge Cutoff Condition
|
Voltage, time, capacity
|
|
Time Range
|
0~ 30000 minutes/work step, time unit: min
|
|
Time Accuracy
|
≤±1%0
|
|
Sampling Tour Period
|
1s-60s optional
|
matters needing attention:
Structure Of Equipment
Channel Parameters
Software Function
| Model |
PSN37-0516040 |
| Number Of Device Channels |
160 channels |
| Overall Dimension |
Width 1880mm× Depth 1008mm× Height 2033mm |
| Color |
White |
| Jig Form |
Electric clamp opening, enhanced flat head clamp |
| Fixture Spacing |
81mm |
| Support Battery Specifications |
1. Battery compatible length 90-210mm，2. Thickness 16-70mm，3. Height 80-230mm，4. Battery tabs 40-150mm |
| Working Power Supply |
Three-phase 5 wire system AC380V±10%,50HZ |
| Power Factor |
0.99 @220V AC, Fully loaded, power grid THDu≤2% |
| Ac Current Distortion Rate |
<5% @220V AC, Fully loaded, power grid THDu≤2% |
| Power Consumption |
≤28 KW |
| Charging Efficiency Of Whole Machine |
Charge≥80%; discharge≥70% |
| Work Environment |
Indoors, temperature is 10-30℃ under air convection. |
| Heat-Dissipating Method |
Air cooling |
|
Voltage Testing Range
|
DC 0~5V
|
|
Battery Voltage Range
|
Charge DC 0～4.5V；Discharge DC 4.5～2V
|
|
Constant Voltage Range
|
DC 2~4.5V
|
|
Voltage Accuracy
|
±(0.5% Reading+0.5% Full Degree)
|
|
Voltage Resolution
|
0.1mV
|
|
Voltage Stability
|
≤(±1mV)
|
|
Current Range
|
Charge DC100mA～ 40A；Discharge DC 100mA～40A
|
|
Accuracy Of Current
|
±(0.5% Reading+0.5% Full Degre)
|
|
Current Steady Reading
|
≤(±1mA)
|
|
Control Mode
|
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system
|
|
Communication Mode
|
485 serial port communication (baud rate 57600)/TCP communication/chart
|
|
Workflow Setting
|
Up to 32 work steps and 256 cycles can be set, with the function of nested loops
|
|
Charging Mode
|
The function of nested loops
|
|
Charge Cutoff Condition
|
Constant, current, constant, voltage, -△V
|
|
Discharge Mode
|
Voltage, current, time, capacity
|
|
Discharge Cutoff Condition
|
Voltage, time, capacity
|
|
Time Range
|
0~ 30000 minutes/work step, time unit: min
|
|
Time Accuracy
|
≤±1%0
|
|
Sampling Tour Period
|
1s-60s optional
|
Each battery test channel features an independent voltage and current loop design, ensuring stability without impact. It allows for functions like start, stop, pause, continue, and protection for individual channels.
Automatic calibration of charging and discharging current accuracy, and voltage accuracy is achievable through software.
Equipment precision of 0.05%, ensuring high stability in measurement and operation.
Environmentally friendly and energy-efficient, resulting in cost recovery within 1-2 years.
