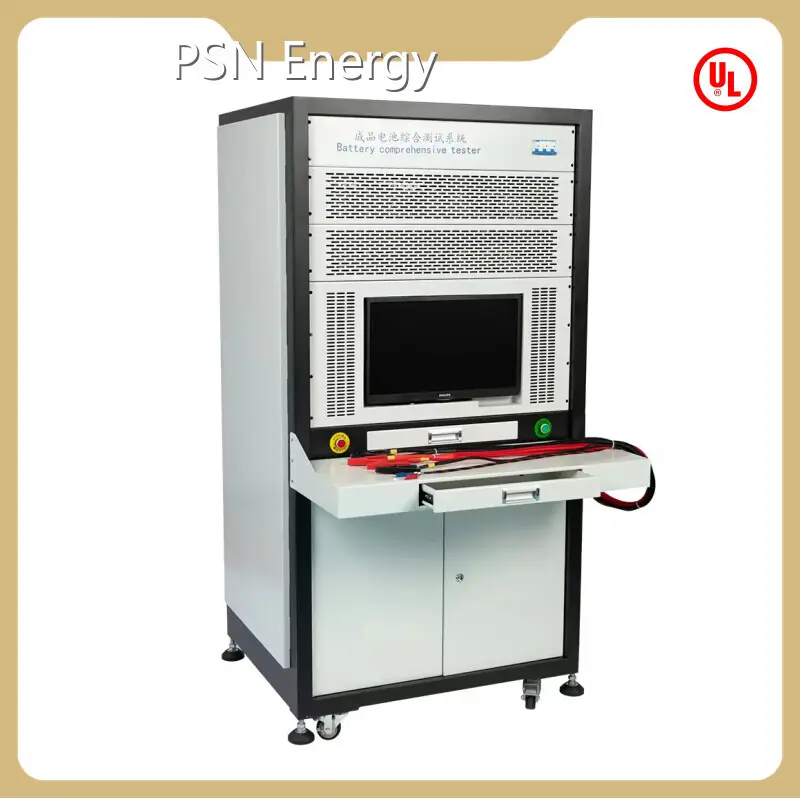

12v Lithium Battery Tester PSNTECH Wholesale - PSN Energy 1

12v Lithium Battery Tester PSNTECH Wholesale - PSN Energy 2

12v Lithium Battery Tester PSNTECH Wholesale - PSN Energy 3

12v Lithium Battery Tester PSNTECH Wholesale - PSN Energy

Application:

Lithium Battery Pack line

Brand Name:

PSNTECH

Size:

950*1150*1880mm

Minimum order quantity:

Color:

white/black/can be customermade

Inquiry

Product details of the 12v Lithium Battery Tester

Quick Overview

PSN Energy 12v Lithium Battery Tester is quite attractive with its design. The advanced technology in procession with universal quality norms makes this product of high quality. This product has been used by more and more people because of its cost-effective advantages.

Product Introduction

We pursue perfection in every detail of the 12v Lithium Battery Tester we produce. And our products represent the excellent quality.

Model	PSN-BTS100-40-400
Test Item	Details	Test Range	Resolution
Open circuit voltage	Open circuit voltage	10-150V	2mV
AC internal impedance	AC internal resistance test	0-1000mV	1mV
Discharge test	Starting voltage	0-150V	2mV
	End voltage	0-150V	2mV
	discharge current	0.1-200A	1mA
	Discharge time	0-60S	1mS
Discharge over current test	Over discharge current	10-400A	1mA
	Over current delay	0-30S	1mS
Charging test	Starting voltage	10-150V	2mV
	End voltage	10-150V	2mV
	Charge current	0.1A-200A	1mA
	Charge time	0-60S	1mS
Charging protection test	Charging overcurrent	4-200A	1mA
	Charging delay	0-30S	0.1mS
resistanceR1/R2	NTC	0-1000KΩ	0.1KΩ
Sustainable output power		30KW
Sustainable load power		35KW
Online mode		Serial communication (RS232, which can be used by multiple computers online)
Test data		The generated data table is automatically saved and can be exported to excel
Barcode management		Support bar code startup and binding test data
Warranty Period		1Year
Free software upgrade service		Upgrade for free for life until the hardware is incompatible
Heat dissipation		Ventilation system and forced air cooling
Dimension	*95011501880mmmm*
Weight	140KG
Channel Qty	1
Spare Parts	Computer, test pen line, user manual, computer software, etc

BTS series comprehensive tester is a device for quikcly and accurately testing the performance of finished battery pack.

The system uses a 32-bit ARM processpr and a 16-bit AD converter for voltage ,AC internal resistance,discharge test and etc.

Compared with similar devices the system has faster testing speed,higher testing accuracy and supports simultaneous operation of multiple devices.

Model no.:PSN-BTS150-200-400

Purpose: Used for testing semi-finished and finished battery packs below 100V

Basic test items

Battery activation (charging, discharging, disconnecting load, etc.)

Open circuit voltage 1, open circuit voltage 2 (can detect charging port voltage)

AC internal resistance

DC internal resistance

Discharge test (battery PACK continuous load capacity, continuous discharge to check voltage drop ΔV)

Discharge overcurrent test (battery PACK discharge overcurrent protection function test, support secondary protection test)

Charge test (battery PACK continuous charging function, verify whether the charging is normal)

Charge overcurrent test (battery PACK charge overcurrent protection function test, support secondary protection test)

Resistance R1, R2 test (ID, NTC and other resistance tests)

Short circuit test (test the battery positive and negative short-circuit battery cut-off protection time (uS level), support shutdown

voltage detection, recovery voltage detection)

Equipment protection function

Software protection function: power-off data protection

Hardware protection: power-off protection, short circuit protection, battery reverse connection, wrong connection protection

matters needing attention:Can customermade the current as per your request.

Product Display

BTS150-200-400 (7) (2)

BTS150-200-400 (6)

BTS150-200-400 (5) (2)

BTS150-200-400 (4)

usage method:Please refer our user manual or follow our youtube channel .
