Focus on customer made high quality power lithium battery and test equipment to very application.

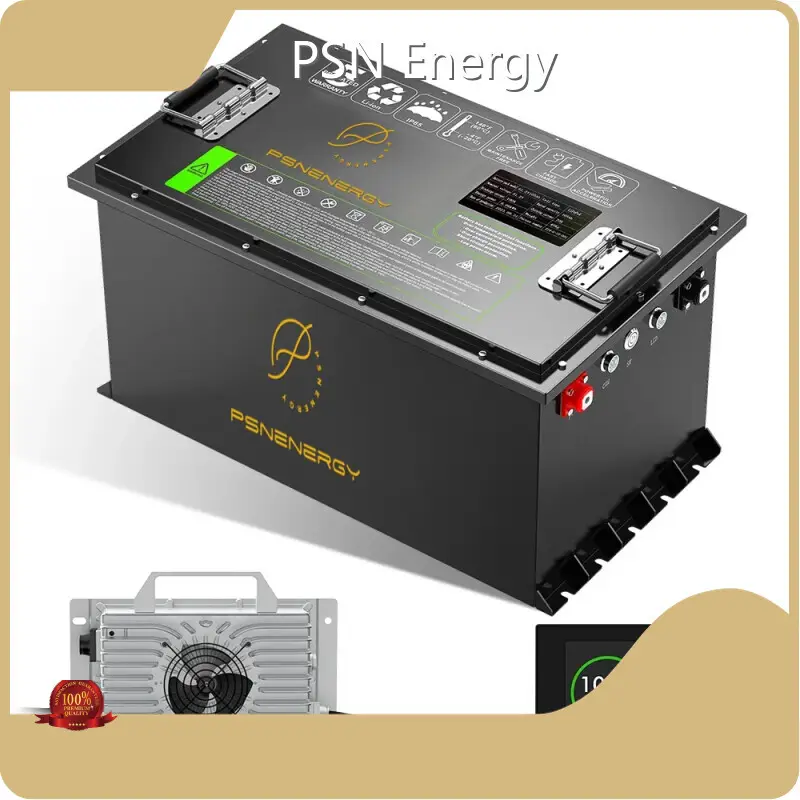

Portable Ev Battery Pack by PSN Energy
BATTERY
|
Cell Type: |
LiFePO4 Prismatic 3.2V 105Ah |
|
Warranty: |
5 Years |
|
Cycle Life: |
4000+Times |
|
Nominal Voltage: |
51.2V |
|
Rated Capacity: |
105Ah |
|
Energy: |
5376Wh |
|
Certificate: |
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati |
|
Charger: |
Built-in waterproof charger (optional) |
BMS
|
BMS： |
105A |
|
Max. Continuous Discharge Current： |
105A |
|
Max. Discharge Current 10 Second：： |
200A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
57.6V ± 0.8V |
|
Recommend Charge Current: |
20A(0.2C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
Can be customization |
|
Weight Approx.: |
45kgs |
|
Size: |
509*333*245mm |
|
Housing Material: |
metal case |
|
Protection Class: |
IP54 |
FAQ
Company Advantages
· In order to provide the best quality Portable Ev Battery Pack, PSN Energy never skimps on raw materials.
· This product is cost-effective and the quality is exceptional.
· There are more and more customers showing great interests in its huge growth prospects.
Company Features
· Shenzhen PSN Energy Co.,Ltd has independently researched and developed Portable Ev Battery Pack.
· We have a wide range of production facilities in our factory. These facilities are equipped with the latest technologies, enabling us to produce high-end quality products and meet almost all requirements of our customers.
· We have got an objective of becoming a distinguished provider.
Application of the Product
PSN Energy's Portable Ev Battery Pack is widely used in the industry.
In addition to high-quality products, PSN Energy also provides effective solutions based on the actual conditions and the needs of different customers.
BATTERY
|
Cell Type: |
LiFePO4 Prismatic 3.2V 105Ah |
|
Warranty: |
5 Years |
|
Cycle Life: |
4000 +Times |
|
Nominal Voltage: |
51.2V |
|
Rated Capacity: |
105Ah |
|
Energy: |
5376Wh |
|
Certifications: |
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati |
|
Charger: |
Built-in waterproof charger (optional) |
|
Bluetooth: |
√ |
BMS
|
BMS： |
105A |
|
Max. Continuous Discharge Current： |
105A |
|
Max. Discharge Current 10 Second： |
200A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
57.6V ± 0.8V |
|
Recommend Charge Current: |
20A(0.2C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
509*333*245mm |
|
Weight Approx.: |
45kgs |
|
Size: |
509*333*245mm |
|
Housing Material: |
metal case |
|
Protection Class: |
IP54 |
FAQ
Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger to charge the battery and turn on the battery, it can be used normally.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Recommend charging voltage: 53.25V ~ 54.75V
Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
● Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.
● Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.
● Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.
● Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
