Focus on customer made high quality power lithium battery and test equipment to very application.

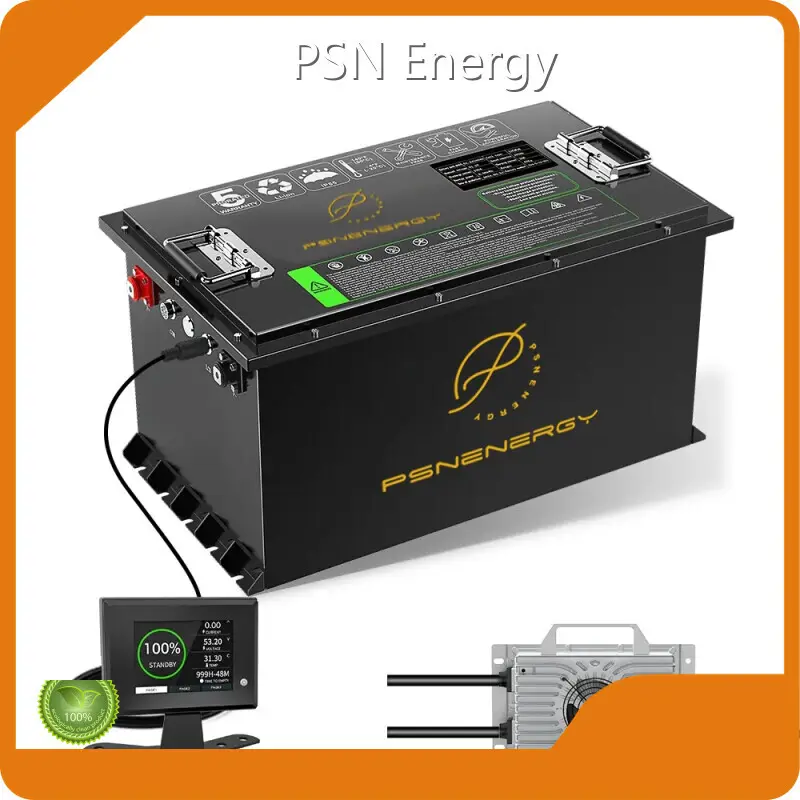

Lithium Scooter Battery Pack by PSN Energy
BATTERY
|
Cell Type: |
LiFePO4 Prismatic 3.2V 105Ah |
|
Warranty: |
5 Years |
|
Cycle Life: |
4000+Times |
|
Nominal Voltage: |
51.2V |
|
Rated Capacity: |
105Ah |
|
Energy: |
5376Wh |
|
Certificate: |
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati |
|
Charger: |
Built-in waterproof charger (optional) |
BMS
|
BMS： |
105A |
|
Max. Continuous Discharge Current： |
105A |
|
Max. Discharge Current 10 Second：： |
200A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
57.6V ± 0.8V |
|
Recommend Charge Current: |
20A(0.2C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
Can be customization |
|
Weight Approx.: |
45kgs |
|
Size: |
509*333*245mm |
|
Housing Material: |
metal case |
|
Protection Class: |
IP54 |
FAQ
Company Advantages
· PSN Energy Lithium Scooter Battery Pack is designed by the elite design team based on user demand.
· The product has gone through the stringent quality check under the supervision of qualified professionals to ensure premium quality.
· Considerate service is provided by PSN Energy to satisfy your needs.
Company Features
· PSN Energy has made great achievements in Lithium Scooter Battery Pack industry with the help of each staff.
· Our highly qualified technicians and professionals are involved in continuous product improvement and updating of production processes. Besides, their research and development always bring high-quality products.
· Following the trend of Lithium Scooter Battery Pack has been always something PSN Energy sticks to. Get price!
Application of the Product
Lithium Scooter Battery Pack of PSN Energy can be widely used in various fields.
PSN Energy is committed to providing customers with high-quality Lithium battery pack,lithium battery tester,lithium battery swapping station as well as one-stop, comprehensive and efficient solutions.
BATTERY
|
Cell Type: |
LiFePO4 Prismatic 3.2V 105Ah |
|
Warranty: |
5 Years |
|
Cycle Life: |
4000 +Times |
|
Nominal Voltage: |
51.2V |
|
Rated Capacity: |
105Ah |
|
Energy: |
5376Wh |
|
Certifications: |
CE, UL, ISO 9001, ROHS, FCC, MSDS certificati |
|
Charger: |
Built-in waterproof charger (optional) |
|
Bluetooth: |
√ |
BMS
|
BMS： |
105A |
|
Max. Continuous Discharge Current： |
105A |
|
Max. Discharge Current 10 Second： |
200A |
CHARGE
|
Charge Method: |
CC/CV |
|
Charge Voltage: |
57.6V ± 0.8V |
|
Recommend Charge Current: |
20A(0.2C) |
TEMPERATURE
|
Charge Temperature: |
0℃ to 50℃/32℉ to 122℉ |
|
Discharge Temperature: |
-20℃ to 60℃ / -4℉ to 140℉ |
|
Storage Temperature: |
-10℃ to 50℃/14℉ to 122℉ |
|
Low-Temperature Protection: |
Yes (32℉/0℃) |
|
Low-Temperature Charging Protection Auto Recovery: |
Yes (41℉/5℃) |
OTHERS
|
Terminals: |
509*333*245mm |
|
Weight Approx.: |
45kgs |
|
Size: |
509*333*245mm |
|
Housing Material: |
metal case |
|
Protection Class: |
IP54 |
FAQ
Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger to charge the battery and turn on the battery, it can be used normally.
If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
Recommend charging voltage: 53.25V ~ 54.75V
Recommend charging current: 20A (0.2C): the battery will be fully charged in around 5hrs to 100% capacity. 50A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity.
Attention:
Connect the charger to the battery before connecting it to the grid power in case of sparks.
Remember to disconnect the charger from the battery after fully charging.
● Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration.
● Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain.
● Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge.
● Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
