Lithium Ion Battery Tester - - PSN Energy-7
Product details of the lithium ion battery tester
Product Overview
Our independent design for lithium ion battery tester can greatly help to improve our brand awareness. Sampling is critical in the product testing. The lithium ion battery tester produced by PSN Energy is widely used in industry. Shenzhen PSN Energy Co.,Ltd's service team has outstanding analytical and communication skills.
Product Introduction
Our lithium ion battery tester has the following advantages over peer products.
Product Features

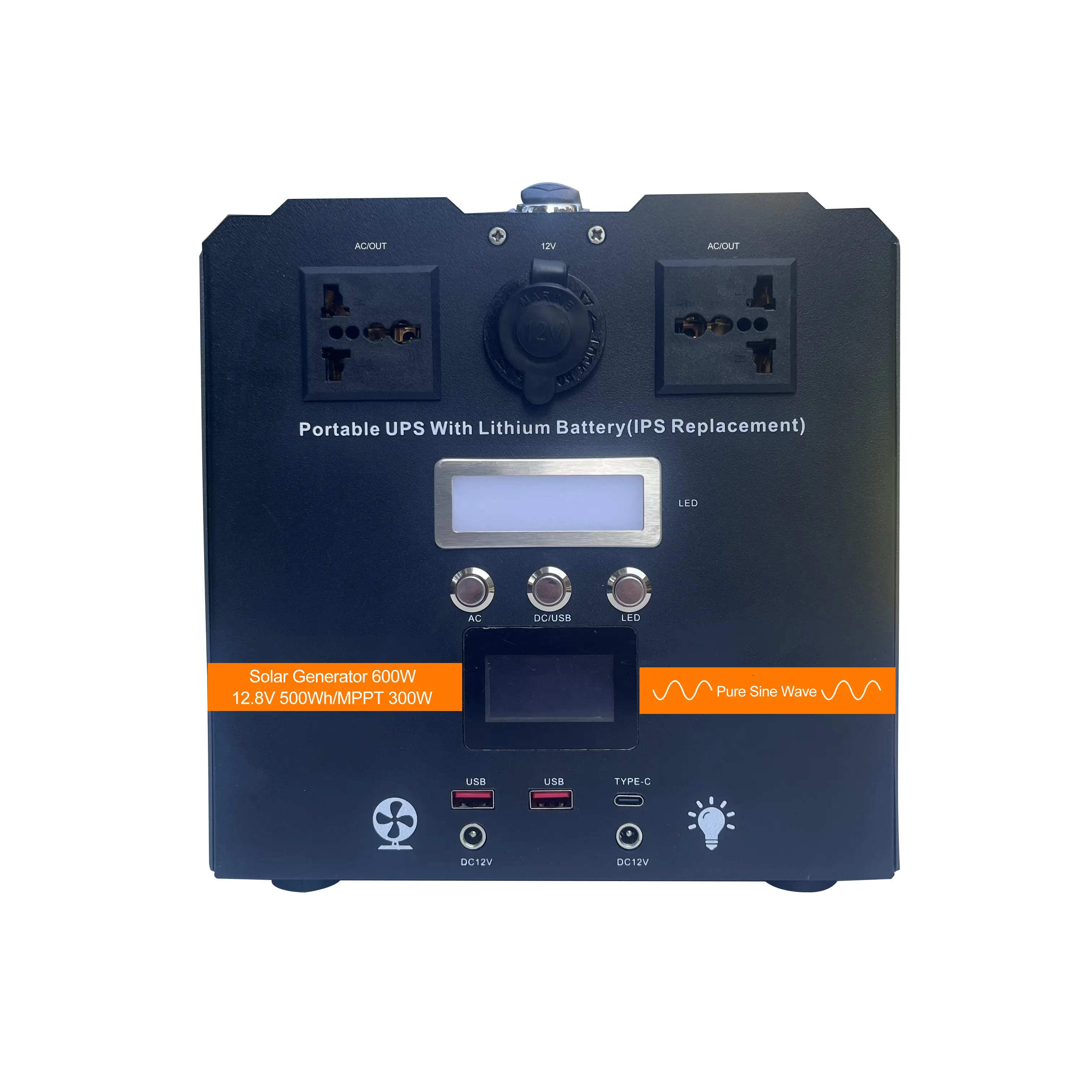

Product Interface Description
Instructions for use of AC appliances
1. Turn on the main switch(DC/USB switch) of the solar generator. (Figure 1) 2. Turn on the AC output switch. (Figure 2) 3. Insert the household appliance plug into the three-hole socket. . (Figure 3) 4. The power consumption of the household appliances used must be within 600W on the generat
Two Method to Charge
1. Charge from Grid 2. Charge from Solar Pannel
Specification
| Battery | |
| Battery type | LiFePO4 |
| Capacity | 12.8V 40Ah/ 512WH |
| BMS type | 4S |
| BMS Discharge / Charge Current | 50A |
| AC Output | |
| Continue power | 600W |
| Peak power | 1200W |
| Wave type | Pure Sin Wave |
| AC output voltage | 220V |
| Frequency | 50Hz(60Hz optional） |
| UPS conversion time | S10ms |
| AC outlet | *2 |
| DC Out and Light | |
| DC5521 12V output | *2 (total 12V 5A) |
| Cigarette output | 12V 6A |
| USB Type-A | *2(2A) |
| USB Type-C | *1 PD18W |
| LCD display | have |
| Switches button | 3 |
| LED Light | 12V5W max |
| Solar MPPT Controller | |
| MPPT Conversion Type | Buck |
| PV Voltage range | 18-24V |
| PV array max power | 300W |
| MPPT charge voltage(CV) | 14.6V |
| MPPT charge curent(max) | 15A |
| MPPT PV input Socket | XT60 Male |
| Ac Charge | |
| AC to DC charger | 14.6V 5A (or customized) |
| AC/DC Charge socket | XT60 Female |
| Maximum charge current | 15A(or customized) |
| General | |
| Working Temperature(° C) | -10-55 |
| Storage Temperature(° C) | -10-50 |
| Weight(Kg) | customized |
| Size(mm) | 213*209*300mm |
