Focus on customer made high quality power lithium battery and test equiment to very application.

Custom Lithium Ion Battery 4000+ by PSN Energy 1
Custom Lithium Ion Battery 4000+ by PSN Energy 2
Custom Lithium Ion Battery 4000+ by PSN Energy 3
Custom Lithium Ion Battery 4000+ by PSN Energy 4
Custom Lithium Ion Battery 4000+ by PSN Energy 1
Custom Lithium Ion Battery 4000+ by PSN Energy 2
Custom Lithium Ion Battery 4000+ by PSN Energy 3
Custom Lithium Ion Battery 4000+ by PSN Energy 4

Custom Lithium Ion Battery 4000+ by PSN Energy

Application:
forklift
Material Science:
Lithium battery
Packing:
wooden case
Inquiry
Send your inquiry
Cycle life
4000+
Size
Customermade

Product details of the custom lithium ion battery


Product Specification

Cycle life: 4000+

Size: Customermade


Quick Overview

Shenzhen PSN Energy Co.,Ltd provides different designs of custom lithium ion battery for your choice. The product is accurately manufactured to the highest quality standard. With strong competitive advantages, it is welcomed by overseas customers.


Product Introduction

Compared with other products in the same category, custom lithium ion battery produced by PSN Energy has the following advantages.

80V forklift
20250213_153659_000

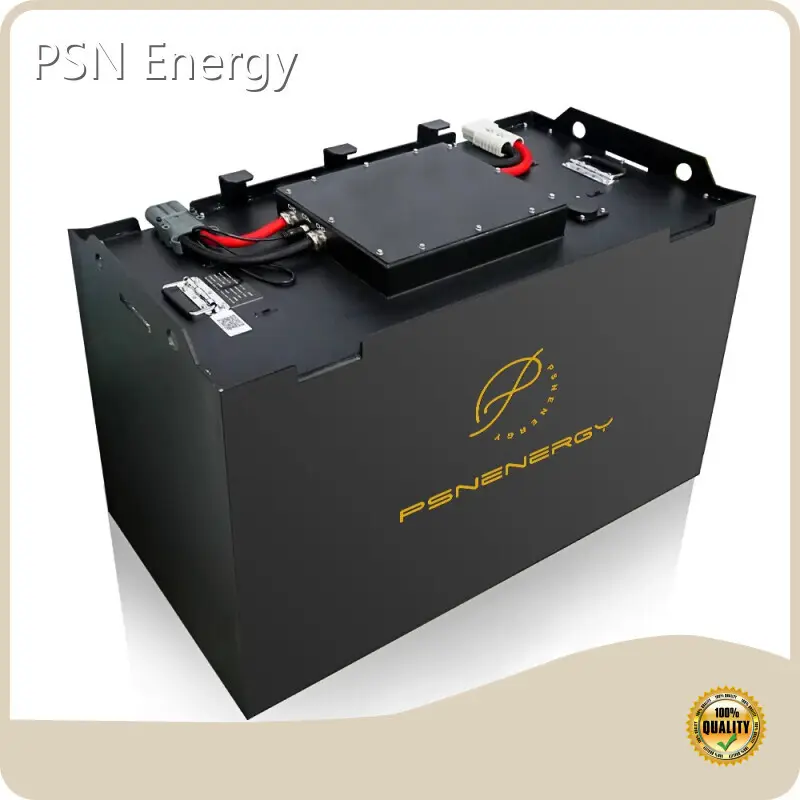

Detail Description of the Forklift Battery
Features
Features
Using Automotive Grade A battery cells offer superior performance, longevity, and safety. They provide higher energy density, faster charging, and more stable power output. With lower internal resistance, they minimize heat generation and improve efficiency. These premium cells ensure a longer lifespan, deeper discharge cycles, and enhanced reliability, making them an excellent choice for Forklift
Replace the Lead Acid Battery Easily
Superior Performance:Lithium - ion batteries offer significantly better performance. With a higher energy density, they provide a more stable and powerful power output. This enables forklifts to handle heavier loads more efficiently, move faster, and have improved climbing ability, greatly enhancing productivity in various industrial operations. Cost - Efficiency in the Long Run:Although the upfront cost of lithium - ion batteries is higher, they have a much longer lifespan. For example, a typical lithium - ion battery can endure over 4000 charge - discharge cycles, while lead - acid batteries usually only manage 300 - 500 cycles. This means fewer replacements over time, resulting in substantial long - term cost savings. Environmental Considerations:Lead - acid batteries contain toxic lead, which poses a significant environmental risk during production, use, and disposal. Lithium - ion batteries, on the other hand, are free from such harmful heavy metals, making them a much more environmentally friendly choice and helping businesses meet their sustainability goals. Low Maintenance Requirements:Lead - acid batteries demand regular maintenance, like adding distilled water and performing equalizing charges. In contrast, lithium - ion batteries are virtually maintenance - free. This not only saves time and labor but also reduces the potential for human - error - related issues, ensuring the forklift is always ready for operation.
Monitor your battery by connect APP
Lithium batteries with mobile app connectivity allow real-time monitoring of battery status, including charge level, temperature, voltage, and health. This enhances convenience, improves maintenance, and helps detect issues early, ensuring optimal performance and a longer lifespan for golf cart batteries.
详细
More specification FYI
As the manufacturer ,OEN is welcome. We also can customermade the battery pack as per your forklift power ,size limt as well as the weight request
Build Your Own Brand Forklift Battery
Customize your logo to establish a unique brand identity and enhance market recognition. A personalized logo boosts credibility, builds customer trust, and sets your brand apart. By branding your lithium batteries, you create a professional image, strengthen loyalty, and increase business growth in a competitive market.
20250213_154044_021

BATTERY

Cell Type:

LiFePO4 Prismatic 3.2V 300Ah

Warranty:

5 Years

Cycle Life:

4000+Times

Nominal Voltage:

51.2V

Rated Capacity:

300Ah

Energy:

15.36KWh

Certificate:

CE, UL, ISO 9001, ROHS, FCC, MSDS certificati

Charger:

Built-in waterproof charger (optional)



BMS

BMS:

200A

Max. Continuous Discharge Current:

200A

Max. Discharge Current 10 Second:

300A



CHARGE

Charge Method:

CC/CV

Charge Voltage:

57.6V ± 0.8V

Recommend Charge Current:

150A(0.5C)



TEMPERATURE

Charge Temperature:

0℃ to 50℃/32℉ to 122℉

Discharge Temperature:

-20℃ to 60℃ / -4℉ to 140℉

Storage Temperature:

-10℃ to 50℃/14℉ to 122℉

Low-Temperature Protection:

Yes (32℉/0℃)

Low-Temperature Charging Protection Auto Recovery:

Yes (41℉/5℃)



OTHERS

Terminals:

Can be customization

Weight Approx.:

850kgs

Size:

970*640*740mm

Housing Material:

metal case

Protection Class:

IP54



FAQ

1
What to do when receive the battery?
Please charge the Bluetooth battery first after receiving it. This will ensure that the battery can be turned on and the Bluetooth connection is established.   Our Bluetooth batteries are delivered in the off state, the virtual voltage of the battery terminal is 3V-5V, this is a normal phenomenon, just use the AC-DC lithium battery charger to charge the battery and turn on the battery, it can be used normally. If you intend to store the battery for an extended period without use, we recommend charging it to a SOC of 30% to 50% and conducting maintenance every three months. These measures will help preserve its functionality and performance in the long run.
2
How can I download the Bluetooth App?
Apple APP Store and Google play. Download and open the app to directly scan the QR code and connect the battery or search for nearby Bluetooth batteries.
3
How to Charge the 48V 300Ah Forklift Lithium LiFePO4 battery?
We recommend using a 58.4V battery charger to maximize the capacity Recommend charging voltage: 53.25V ~ 54.75V Recommend charging current: 150A (0.5C): the battery will be fully charged in around 2hrs to 100% capacity. 150A (0.5C): the battery will be fully charged in around 2hrs to around 97% capacity. Attention: Connect the charger to the battery before connecting it to the grid power in case of sparks. Remember to disconnect the charger from the battery after fully charging.
4
Do I need a special charger for lithium Forklift batteries?
You need the correct charger for your particular Lithium battery. Using a charger designed specifically for lithium batteries ensures optimal performance and longevity.
5
What is the life expectancy of a lithium forklift battery?
Lithium batteries have a significantly longer lifespan compared to lead-acid batteries,  lithium forklift batteries can last 10+ years.
6
Is a 48V Lithium Forklift Battery Better Than 36V?
While 36V setups have been popular in golf carts for many years and perform well, there are notable advantages to using a 48V system: ● Faster Acceleration: A 48V system provides higher low-end torque, allowing for quicker acceleration. ● Increased Power: With more overall power, a 48V setup is beneficial for tackling hills and challenging terrain. ● Improved Efficiency: 48V batteries draw fewer amps, making them more efficient than 36V batteries. This efficiency translates to longer usage on a single charge. ● Better for Rough Terrain: A 48V system handles rougher terrain effectively, enabling off-road capabilities and easier navigation of hilly areas.
