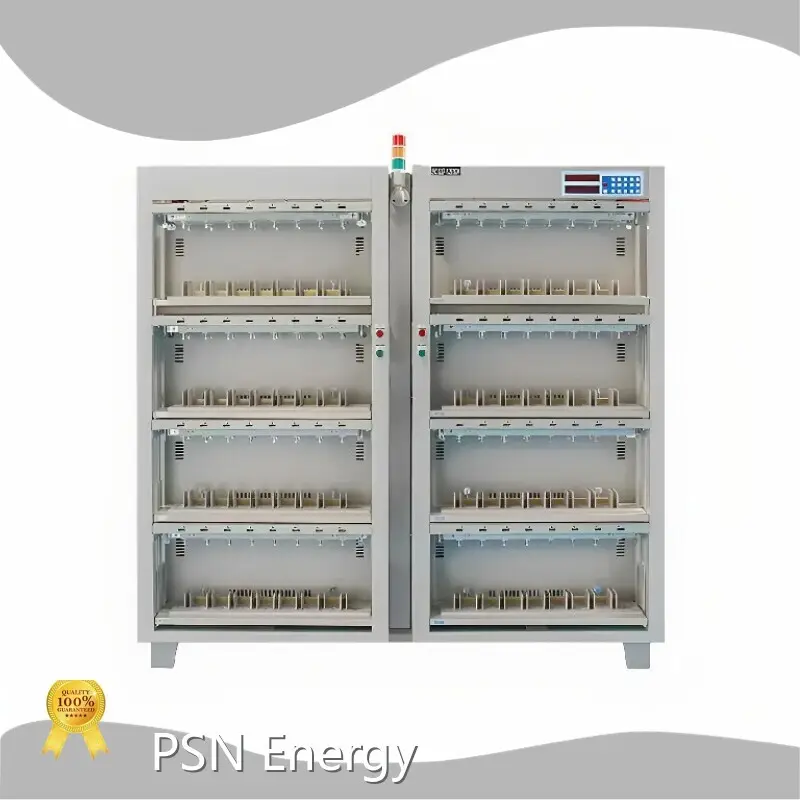

Cell Testing Machine PSN37-0530128 Wholesale - PSN Energy
Company Advantages
· PSN Energy cell testing machine is developed by our professionals using optimum grade material.
· Our plant has perfect quality assurance system and production guarantee system for this product.
· The product has a great future in this realm because of its remarkable economic return.
|
Model |
PSN37-128/30A |
|
Number Of Device Channels |
128 channels |
|
Overall Dimension |
Width 1028mm× Depth 1880mm× Height 1843mm |
|
Color |
Gray white |
|
Jig Form |
Electric clamp opening, enhanced flat head clamp |
|
Fixture Spacing |
81mm |
|
Support Battery Specifications |
1. Battery compatible length 90-210mm 2. Thickness 16-70mm 3. Height 80-230mm 4. Battery tabs 40-150mm |
|
Working Power Supply |
Three-phase 5 wire system AC380V±10%,50HZ |
|
Power Factor |
0.99 @220V AC, Fully loaded, power grid THDu≤2% |
|
Ac Current Distortion Rate |
<5% @220V AC, Fully loaded, power grid THDu≤2% |
|
Power Consumption |
≤23 KW |
|
Charging Efficiency Of Whole Machine |
Charge≥80%; discharge≥70% |
|
Work Environment |
Indoors, temperature is 10-30℃ under air convection. |
|
Heat-Dissipating Method |
Air cooling |
|
Voltage Testing Range |
DC 0~5V |
|
Battery Voltage Range |
Charge DC 0～4.5V；Discharge DC 4.5～2V |
|
Constant Voltage Range |
DC 2~4.5V |
|
Voltage Accuracy |
±(0.5% Reading+0.5% Full Degree) |
|
Voltage Resolution |
0.1mV |
|
Voltage Stability |
≤(±1mV) |
|
Current Range |
Charge DC100mA～ 30A；Discharge DC 100mA～30A |
|
Accuracy Of Current |
±(0.5% Reading+0.5% Full Degre) |
|
Current Steady Reading |
≤(±1mA) |
|
Control Mode |
Computer Control Equipment Work，whole cabinet control/single board startup/single point startup, with scanning system |
|
Communication Mode |
485 serial port communication (baud rate 57600)/TCP communication/chart |
|
Workflow Setting |
Up to 32 work steps and 256 cycles can be set, with the function of nested loops |
|
Charging Mode |
The function of nested loops |
|
Charge Cutoff Condition |
Constant, current, constant, voltage, -△V |
|
Discharge Mode |
Voltage, current, time, capacity |
|
Discharge Cutoff Condition |
Voltage, time, capacity |
|
Time Range |
0~ 30000 minutes/work step, time unit: min |
|
Time Accuracy |
≤±1%0 |
|
Sampling Tour Period |
1s-60s optional |
Product Advantage
Product Display
FAQ
Company Features
· Mainly engaging in the production of cell testing machine, Shenzhen PSN Energy Co.,Ltd is a China-based enterprise that develops rapidly in this field.
· Shenzhen PSN Energy Co.,Ltd has strong financial strength and professional technical R&D team. Shenzhen PSN Energy Co.,Ltd has a professional technical R&D team and dozens of front line workers for cell testing machine production. Shenzhen PSN Energy Co.,Ltd builds up a first-class cell testing machine professional R&D team with numbers of technical personnel.
· We ensure Quality, Stability, and Profitability. Get info!
Product Details
PSN Energy's high-quality cell testing machine is produced according to the national standards. The specific details are as follows.
Product Comparison
The cell testing machine produced by PSN Energy stands out in many similar products. And the specific advantages are as follows.
